Chapter 6 Troubleshooting and Rectifying Channel/Field Faults

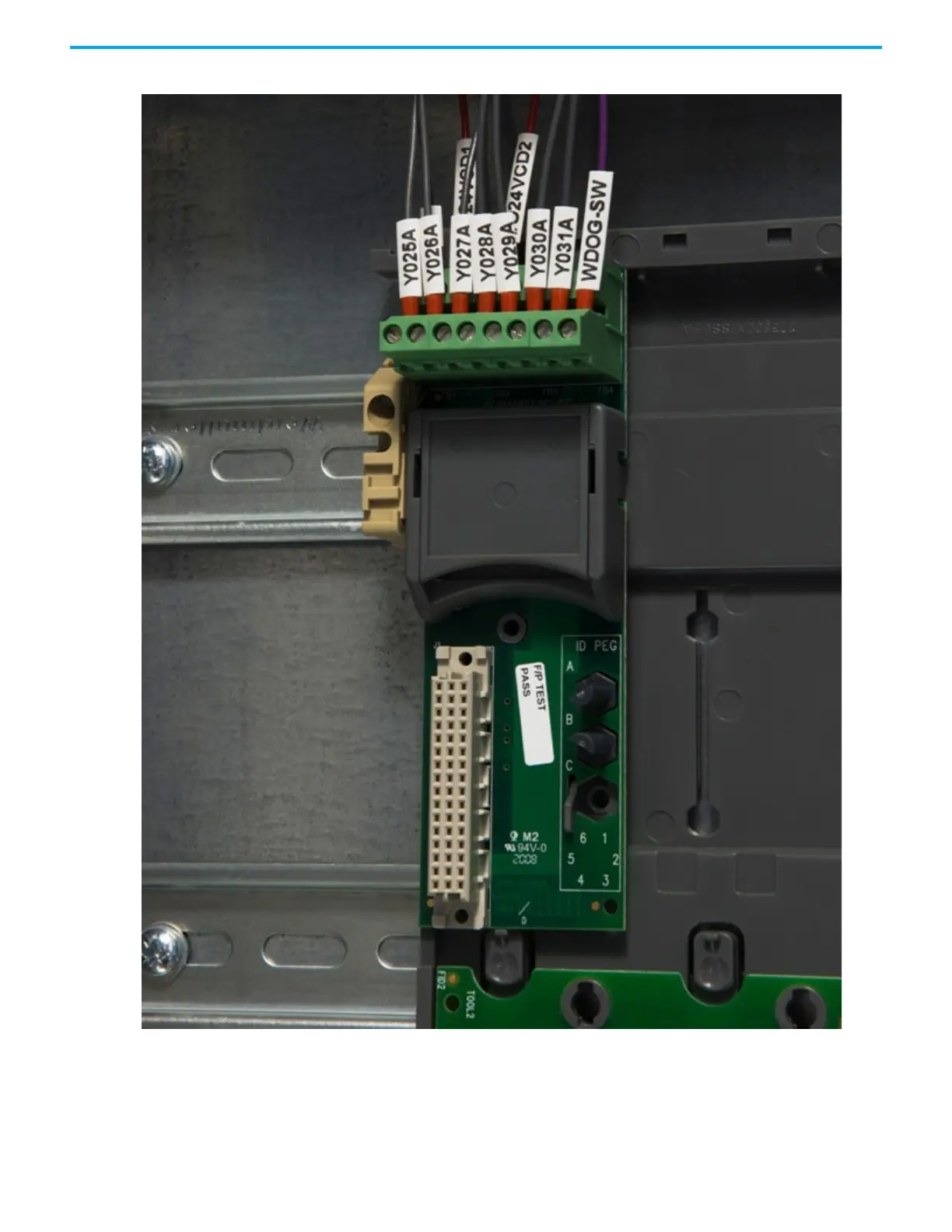

Figure 13 - Termination Assembly
Fit and Wire the New Termination Assembly
1. Insert the retaining clip on the back of the termination assembly into the
slot on the I/O base unit.
•Press the termination assembly onto the base unit and then slide the
assembly up as far as it will go.
