Chapter 6 Configure and Start up the Kinetix 5300 Drive System

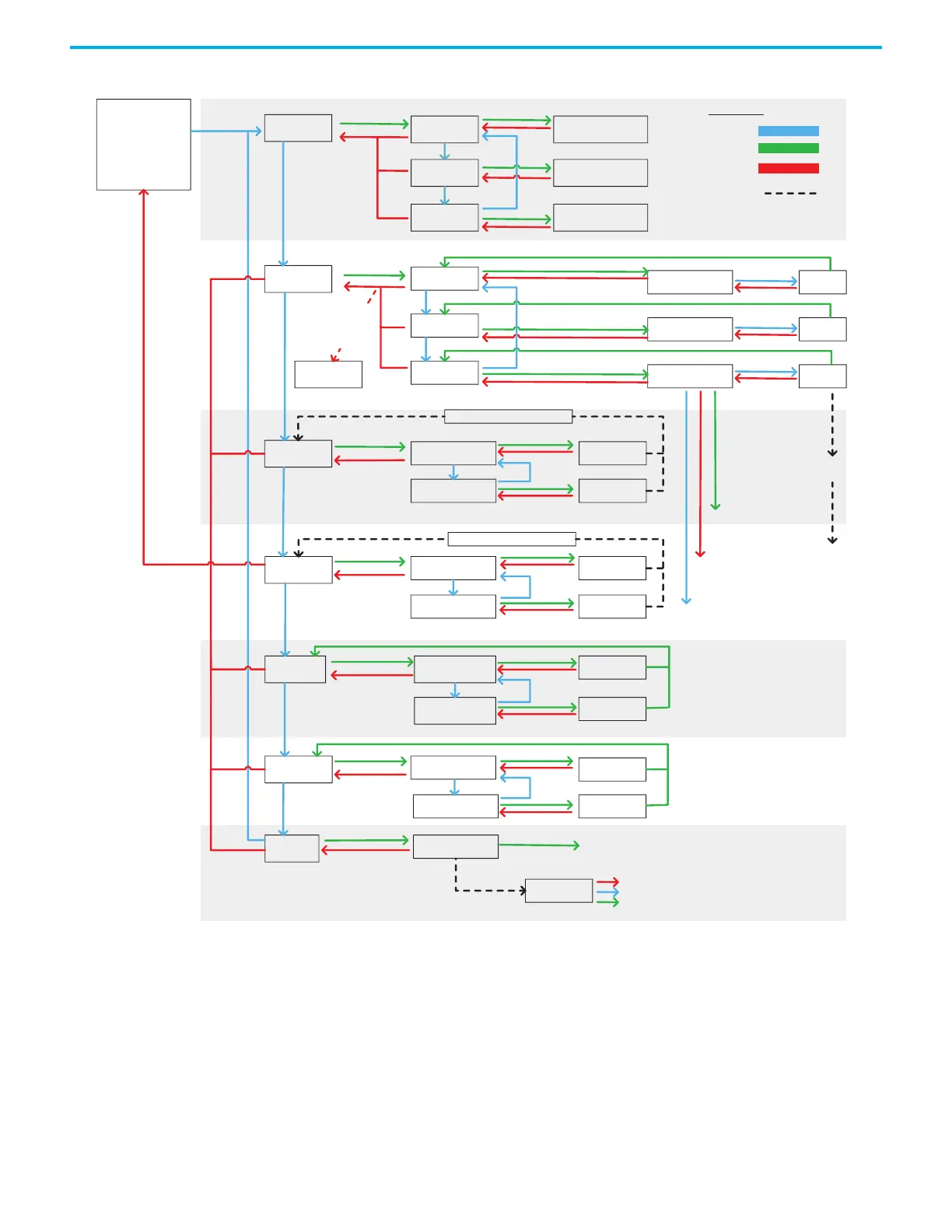

Figure 56 - Status Display Screen Flowchart
View the DC Bus Voltage
1. From the Home screen, press Next to access the main menu.
2. With the INFO screen active, press Select to view to the sub-menus.
3. Press Next to scroll through the sub-menu until BUS VOLTAGE is
displayed.
4. With BUS VOLTAGE displayed, Press Select to view the current DC Bus
Voltage value.
5. To return to the Home Screen, press the Back button until the Home
screen appears.
HOM E SCREEN
(Scrolling IP Address,
CIP State, Fault Codes)
IP SETTINGS
DHCP
HTTP ACCESS
PROTECTED
NET
PROTECTED
UNIT
FACTORY
RESET
IP ADDRESS
SUBNET
GATE
-ON- DHCP
OFF DHCP
ON HTTP ACCESS
-OFF- HTTP ACCESS
-ON- PROTECTED
NET
OFF
PROTECTED NET
ON PROTECTED
UNIT
-OFF- PROTECTED
UNIT
ACCEPT
ACCEPT
ACCEPT
ACCEPT
ACCEPT
ACCEPT
ACCEPT
ACCEPT
ACCEPT
RESET
192.168.001.001
255.255.255.000
192.168.001.200
ACCEPT
ACCEPT
ACCEPT
PREVIOUS
SCREEN
RESTART
NEEDED
IF ANY
CHANGES
ARE
MADE
INFO
CATLOG NO.
VERSION
BUS VOLTAGE
DRIVE CATLOG
NUMBER
FIRMWARE REVISION
DC BUS VOLTAGE
RESTART NEED ED
RESTART NEEDED
RESET FAILED
INCREASE THE
CHARACTER
0 ----> 9
MOVE BACKWARDS
TO THE PREVIOUS
CHARACTER
MOVE FORWARD
TO THE NEXT
CHARACTER
ERROR
FAULTCODE
HOM E
SCREEN
NEXT
SELECT
BACK
NO ACTION
KEYPAD PRESS
