Rockwell Automation Publication 2198-UM005C-EN-P - February 2022 123
Chapter 6 Configure and Start up the Kinetix 5300 Drive System

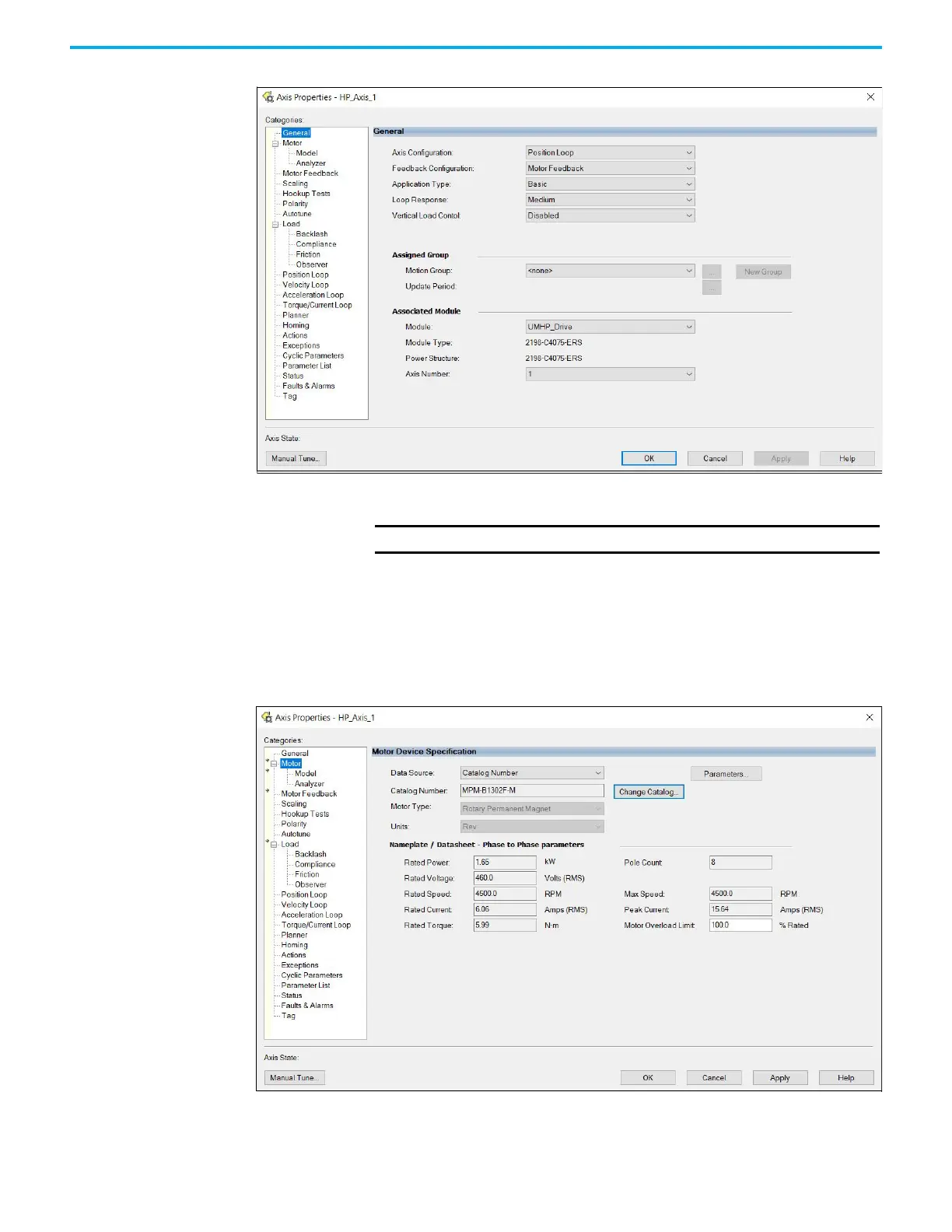

The General and Associated Module dialog box appears.
3. From the General pull-down menus, change configuration settings as
needed for your application.
4. From the Associated Module>Module pull-down menu, choose your
Kinetix 5300 drive.
The drive catalog number populates the Module Type and Power
Structure fields.
5. Click Apply.
6. Select the Motor category.
The Motor Device Specification dialog box appears.
7. From the Data Source pull-down menu, choose Catalog Number.
8. Click Change Catalog.
IMPORTANT Frequency Control is not supported for permanent magnet motors.
