Chapter 6 Configure and Start up the Kinetix 5300 Drive System

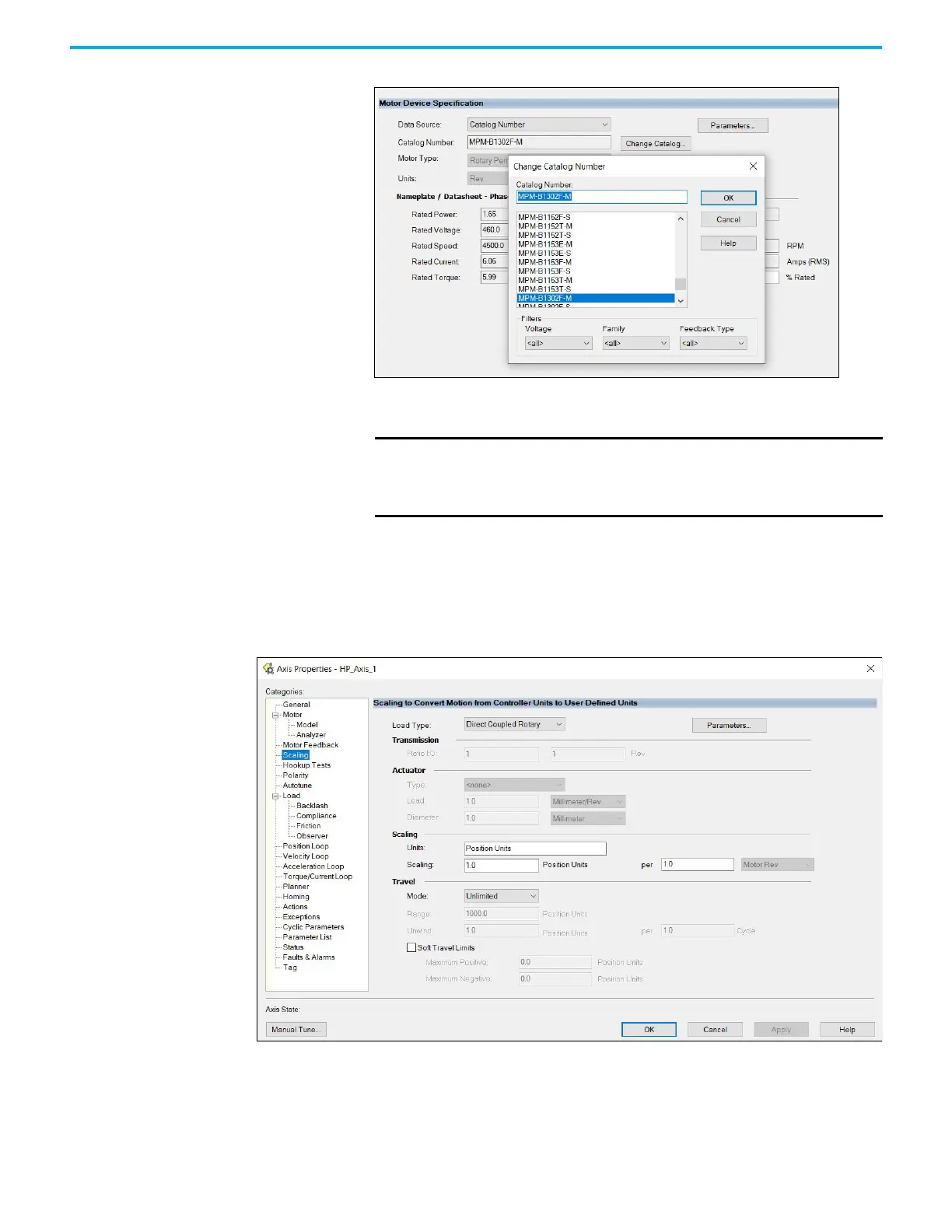

The Change Catalog Number dialog box appears.
9. Select the motor catalog number appropriate for your application.
To verify the motor catalog number, refer to the motor name plate.
10. Click OK to close the Change Catalog Number dialog box.
11. Click Apply.
Motor data specific to your motor appears in the Nameplate / Datasheet -
Phase to Phase parameters field.
12. Select the Scaling category and edit the default values as appropriate for
your application.
13. Click Apply, if you make changes.
IMPORTANT To configure Allen-Bradley® motors and actuators with your
Kinetix 5300 servo drive you must have drive firmware revision
13 or later and Studio 5000 Logix Designer application, version 33
or later.
