Rockwell Automation Publication 2715P-UM001C-EN-P - March 2019 37
Install the PanelView 5510 Terminal Chapter 2
Each Ethernet port has two indicators that provide the activity status.
Device Level Ring Network Topology
A Device Level Ring (DLR) network is a single-fault tolerant ring network that is
intended for the interconnection of automation devices. This topology is also
implemented at the device level. No additional switches are required.
When a fault occurs, the fault location is determined and the supervisor
reconfigures the network to continue sending data on the network. Once the
fault is corrected, the supervisor reconfigures the network to operate as a normal
ring (versus a faulted ring).
For more information on DLR network topology, see EtherNet/IP Embedded
Switch Technology Application Guide, publication ENET-AP005
.

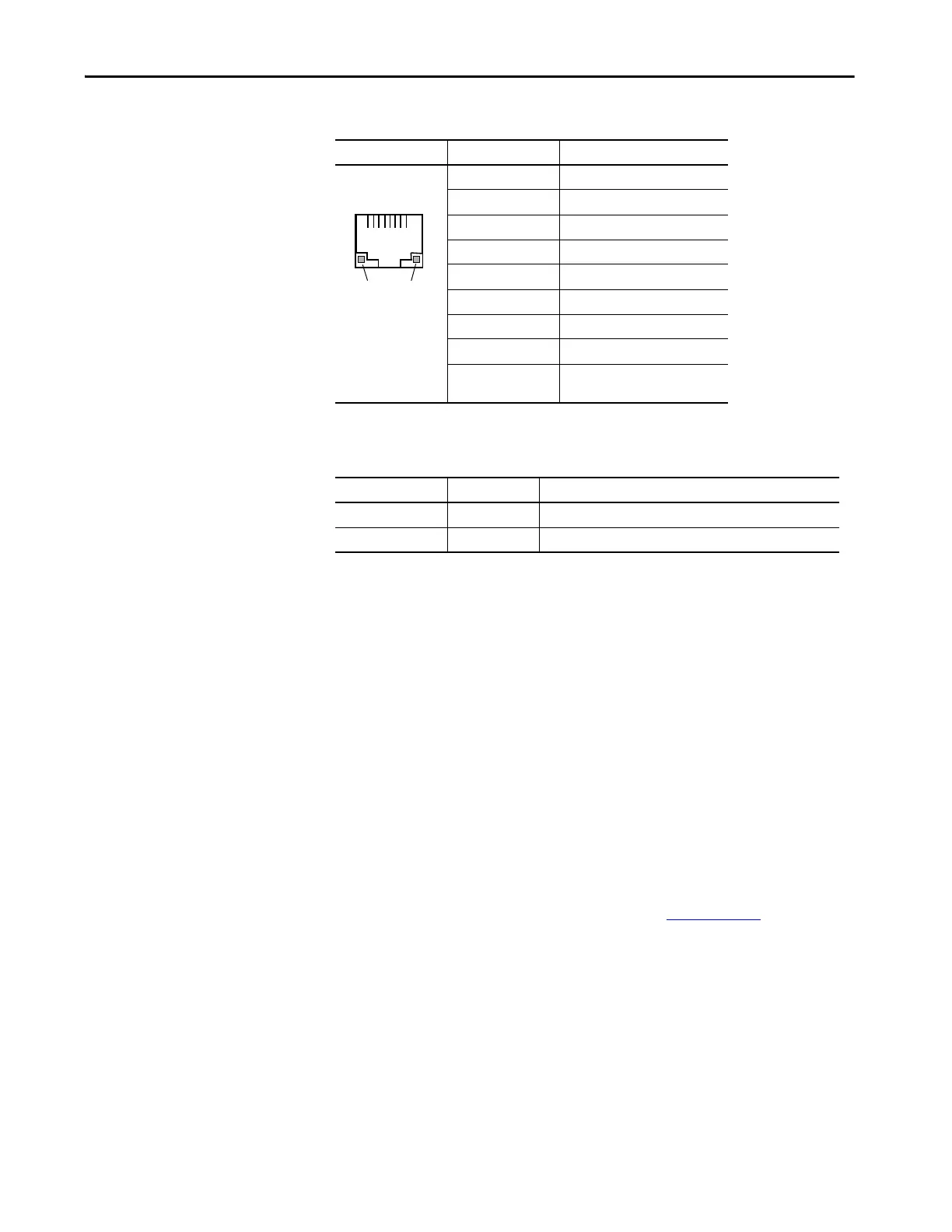

Table 15 - Ethernet Connector Pinout
Connector Pin Pin Name
View of RJ45
Connector
1TD+
2TD-
3RD+
4Unused
5Unused
6RD-
7Unused
8Unused
Shield Connection No direct connection
(AC coupled to chassis GND)
Table 16 - Ethernet Status Indicators
Indicator Color Description
Link Integrity Green On when a link is present.
Activity Yellow Blinks when activity is detected on Ethernet link.
TIP A DLR network contains supervisor nodes and ring nodes. The PanelView 5510
terminal operates only as a ring node on the network.
1
8
Yellow
Indicator
Green
Indicator
