Rockwell Automation Publication 2715P-UM001C-EN-P - March 2019 31
Install the PanelView 5510 Terminal Chapter 2

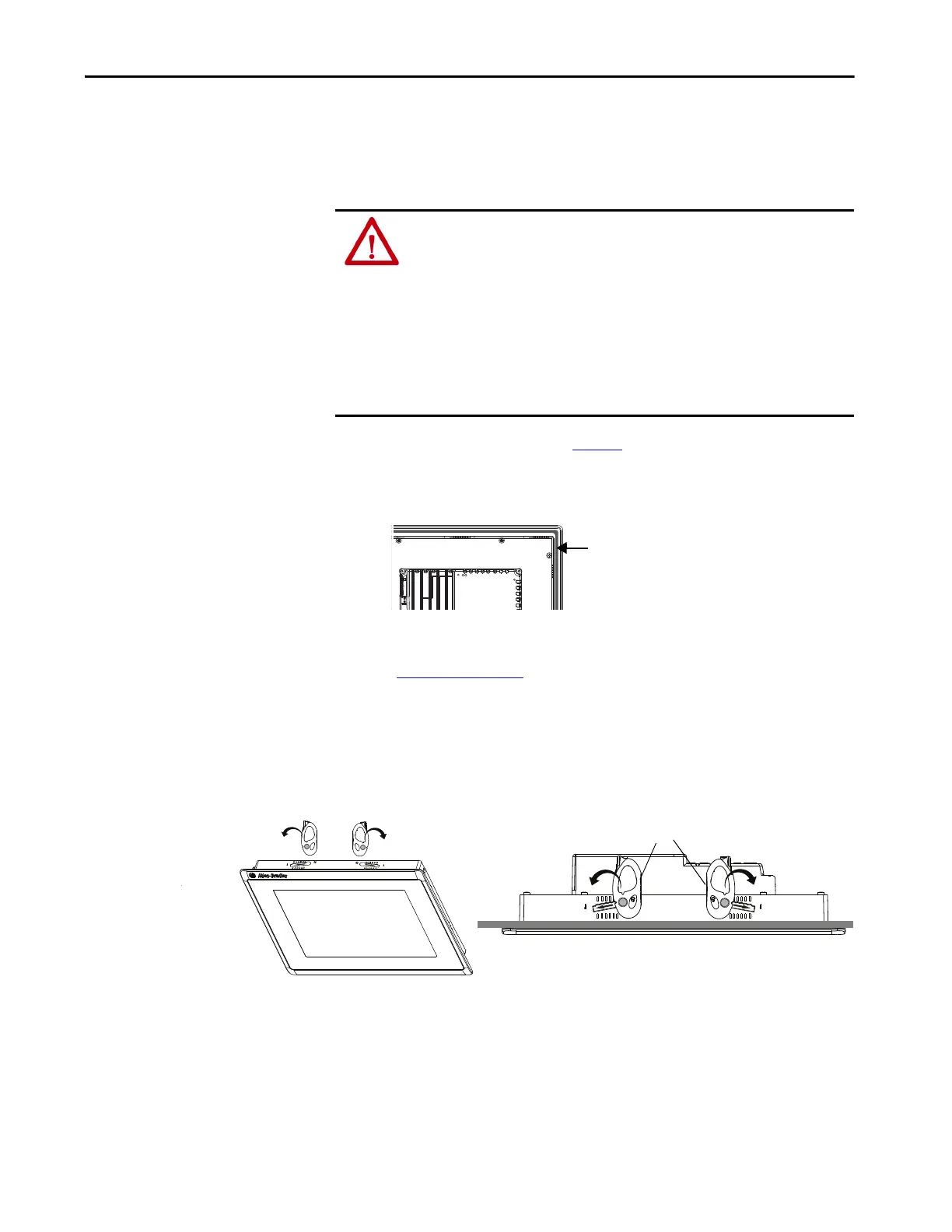

Mount the Terminal in a
Panel
The PanelView 5510 terminals were designed for single-person installation. No
tools are required except for tools to make the panel cutout.
Follows these steps to mount the terminal in a panel.
1. Use the cutout dimensions on page 26
to cut an opening in the panel.
2. Verify that the sealing gasket is present on the terminal.
This gasket forms a compression type seal. Do not use sealing compounds.
3. Insert and stabilize the terminal in the panel cutout.
a. Insert levers in the top corner slots in the orientation that is shown in
Figure 5 on page 30
and rotate the non-flat side of the levers toward
panel.
ATTENTION: Disconnect all electrical power from the panel before making the
panel cutout.
Make sure that the area around the panel cutout is clear and that the panel is clean
of any debris, oil, or other chemicals.
Make sure that metal cuttings do not enter any components that are already
installed in the panel and that the edges of the cutout have no burrs or sharp
edges.
Failure to follow these warnings can result in personal injury or damage to panel
components.
TIP The mounting levers for PanelView 5510 terminals are black
(catalog number 2711P-RMCP).
Do not use gray mounting levers; they are not compatible with
PanelView 5510 terminals.
