Chapter 2 Install the PanelView 5510 Terminal
Prepare for Panel
Mounting
Before mounting your PanelView 5510 terminal in a panel, read this section and
the entire installation procedure on page 31
.

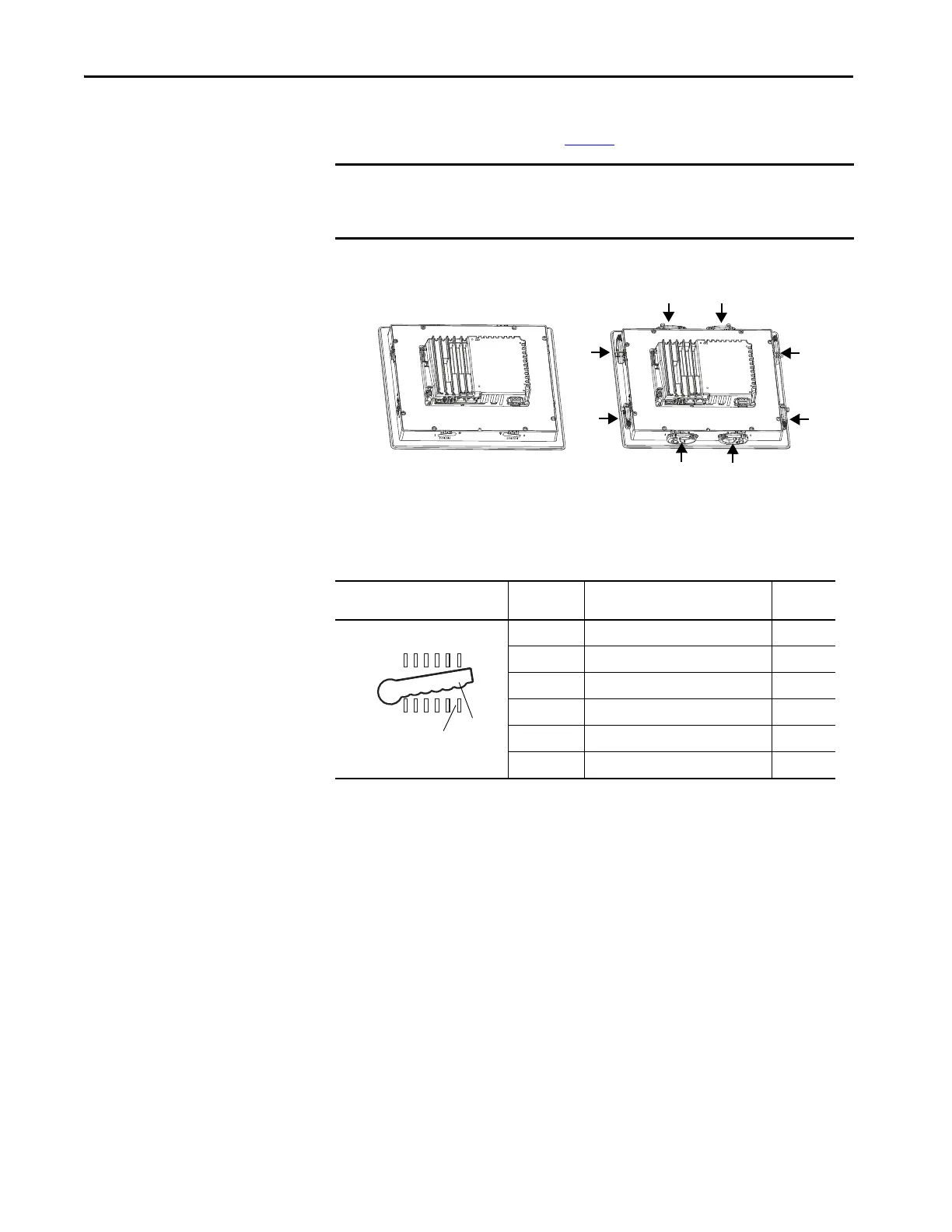

Mounting levers insert into the slots around the bezel to secure the terminal in
the panel. The number of levers varies by terminal size.
Each slot has six notches with alignment marks that are locking positions for a
lever. The thickness of the panel in which you mount the terminal determines the
locking position that is required to maintain a NEMA, UL Type, or IP seal.
Always orient a lever vertically before inserting it into a slot. This orientation is
the only way to slide the lever knob within the slot for positioning. After sliding
the lever to a specific notch, rotate the lever toward the panel to lock it in
position. The flat side of the lever must come into contact with the panel.
IMPORTANT Catalog number 2711P-RMCP mounting levers (black) are used with PanelView
5510 terminals. Do not use gray mounting levers; they are not compatible with
PanelView 5510 terminals.
Table 13 - Lever Locking Positions
Mounting Slot
Lever Lock
Position
Panel Thickness Range
Typical
Gauge
1
1.50…2.01 mm (0.060…0.079 in.) 16
2
2.03…2.64 mm (0.080…0.104 in.) 14
3
2.67…3.15 mm (0.105…0.124 in.) 12
4
3.17…3.66 mm (0.125…0.144 in.) 10
5
3.68…4.16 mm (0.145…0.164 in.) 8/9
6
4.19…4.80 mm (0.165…0.188 in.) 7
1
2
3
4
5
6
Notch
Alignment Mark
Orientation of Slot Varies
