Rockwell Automation Publication 2715P-UM001C-EN-P - March 2019 29
Install the PanelView 5510 Terminal Chapter 2
Initially, you secure the terminal in the panel by sliding each lever to a position
that is one or two notches greater than the final lock position. For example, if the
final lock position is 3, slide each lever to position 4 or 5.
Follow the locking sequence and lever orientations for each terminal as shown in
Figure 5 on page 30
.
You then adjust each lever to its final lock position in the same sequence as shown
in Figure 5 on page 30
.

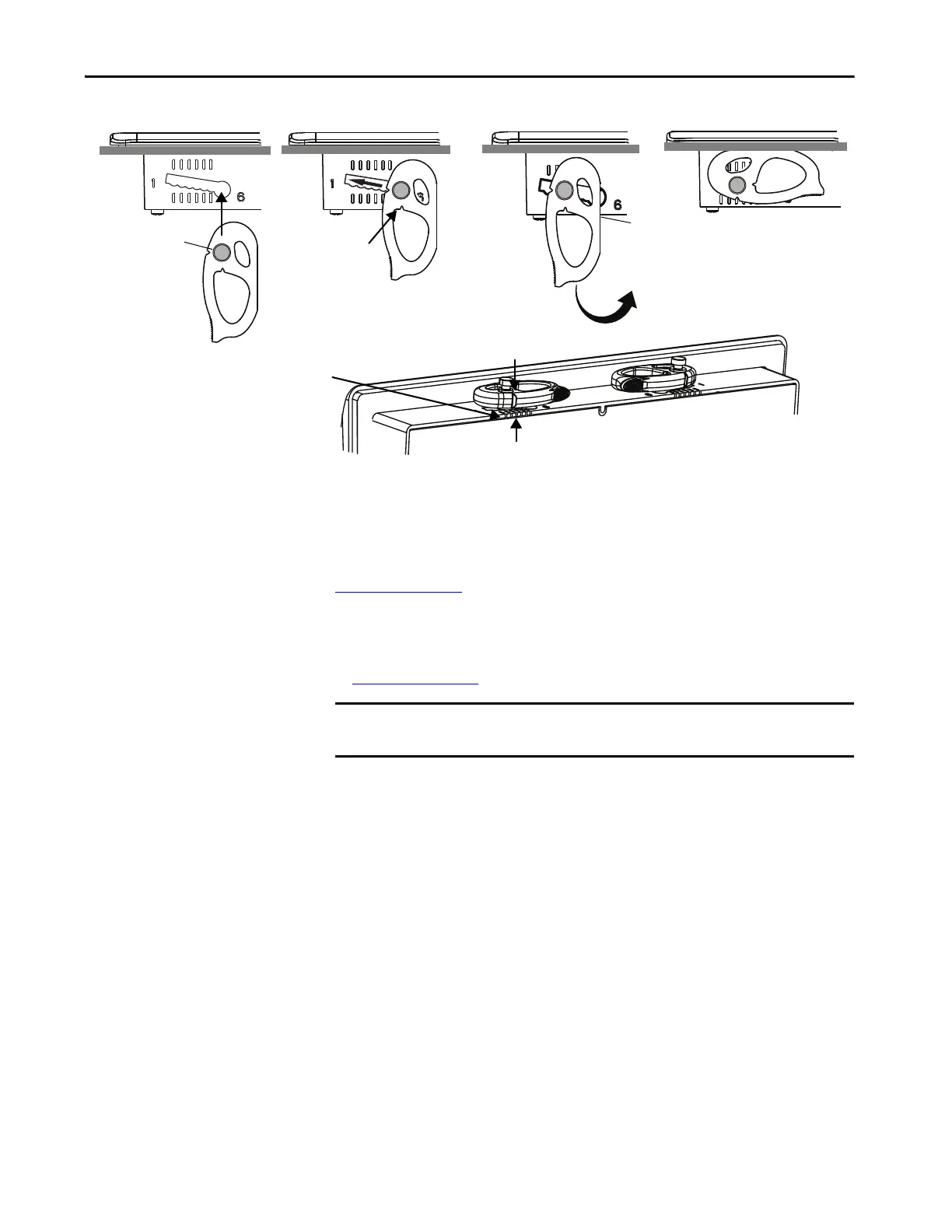

1
Flat Side
Knob on reverse
side of lever
inserts into
large end of slot
1234
The edge of the bezel has alignment indentations
to assist with the lever position.
The notch on the outside of the lever shows that
the lever is locked in position 3.
You can use an erasable marker or grease pencil to mark the
indentations for visibility of slot positions.
Inner notch on lever
shows current lever
position.
TIP If the lock position is 6, slide lever to large end of slot or insertion hole.
IMPORTANT This process equalizes the pressure of the levers against the panel at a gradual
rate that reduces the probability of broken clamps.
