38 Rockwell Automation Publication 2715P-UM001C-EN-P - March 2019
Chapter 2 Install the PanelView 5510 Terminal

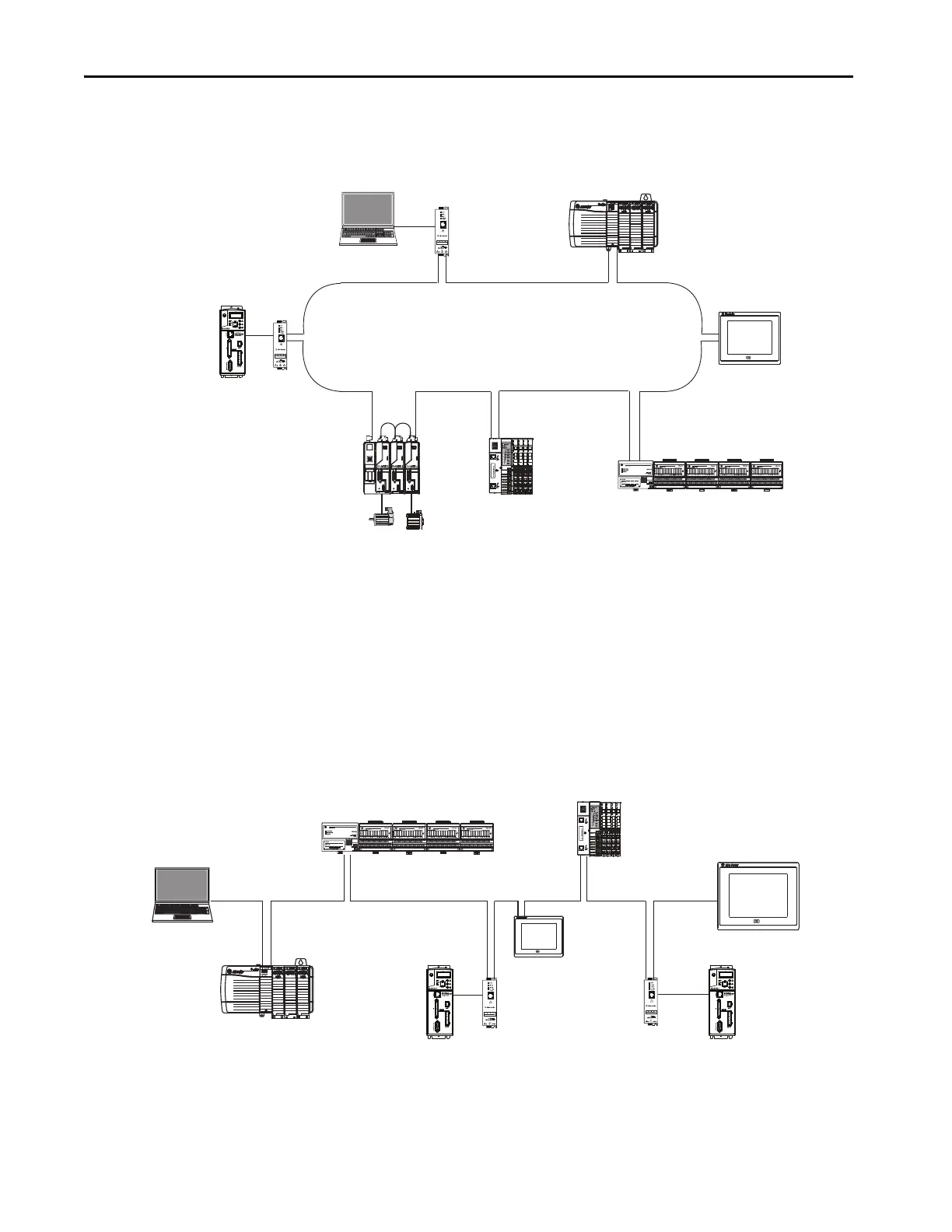

Figure 6 - PanelView 5510 Terminal in a DLR Topology Network
Linear Network Topology
A linear network topology is a collection of devices that are daisy-chained
together across an EtherNet/IP network. Devices that can connect to a linear
network topology use embedded switch technology to eliminate the need for a
separate switch, as required in star network topologies.
Figure 7 - PanelView 5510 Terminal in a Linear Topology Network
PanelView 5510 Terminal
Connected Via Two DLR Ports
Computer Connected Via a 1783-ETAP EtherNet/IP Tap
ControlLogix® Controller with
1756-EN3TR (or EN2TR) Module
Kinetix® 350 Drive Connected Via a
1783-ETAP EtherNet/IP Tap
Kinetix 6500 Drives
with Motors
1734-AENTR POINT I/O™ Adapter
with POINT I/O Modules
1794-AENTR FLEX™ I/O Adapter
with FLEX I/O Modules
PanelView 5510 Terminal Connected
Via One Ethernet Port
Kinetix 350 Drive Connected Via a
1783-ETAP EtherNet/IP Tap
Kinetix 350 Drive Connected Via a
1783-ETAP EtherNet/IP Tap
ControlLogix Controller with
1756-EN3TR (or EN2TR) Module
1794-AENTR FLEX I/O Adapter
with FLEX I/O Modules
1734-AENTR POINT I/O Adapter
with POINT I/O Modules
Computer
PanelView 5510 Terminal
Using Two-port DLR option
