Configure Terminal Settings Chapter 3

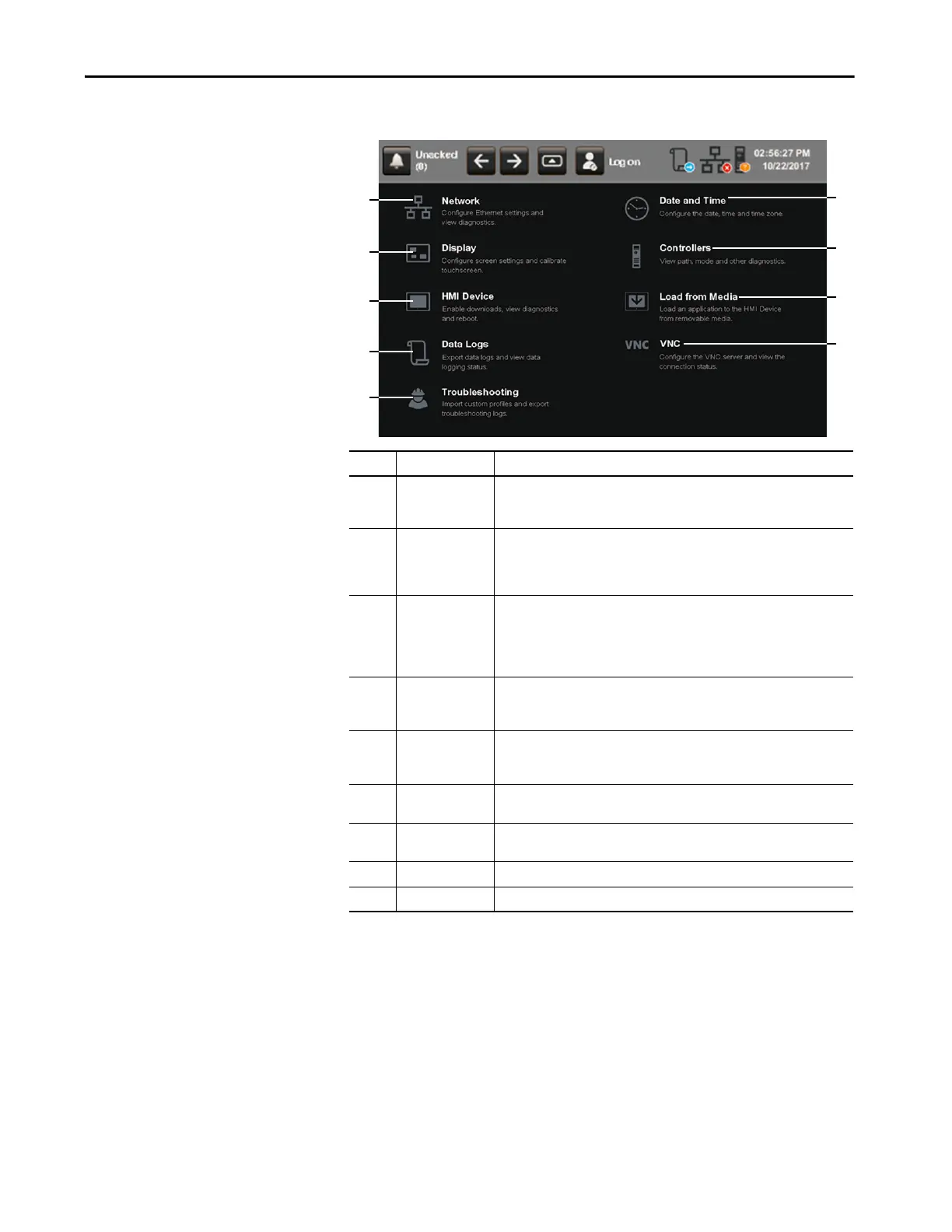

2. On the Settings screen, tab to the menu item and press Enter.
Item Menu Topic Tasks That You Can Perform
1 Network • Configure a static or dynamic device IP address
• Configure Ethernet Link 1 settings
• View network diagnostics
2 Display • Adjust the brightness of the display
• Enable or disable the screen saver
• Configure the screen saver settings
• Calibrate the touch screen
3 HMI Device • Enable or disable downloads and firmware updates
• Enter an HMI device name
• View the catalog number and current firmware revision
• View terminal diagnostic information
• Restart the terminal
4 Data Logs • Export data logs
• Remove the SD™ or SDHC™ card safely
• View data logging status
5 Troubleshooting • Select a default or imported profile for troubleshooting
• Save the troubleshooting log to a USB drive or SD card for Rockwell
Automation technical support
6 Date and Time • Set the date and time on the terminal
• Set the time zone on the terminal
7 Controllers • View general information for the controller
• View diagnostic information for the controller
8 Load from Media • Load an application to the HMI device from removable media
9 VNC • Configure the VNC server and view the connection status
