Rockwell Automation Publication 2715P-UM001C-EN-P - March 2019 83
Install and Replace Components Chapter 5

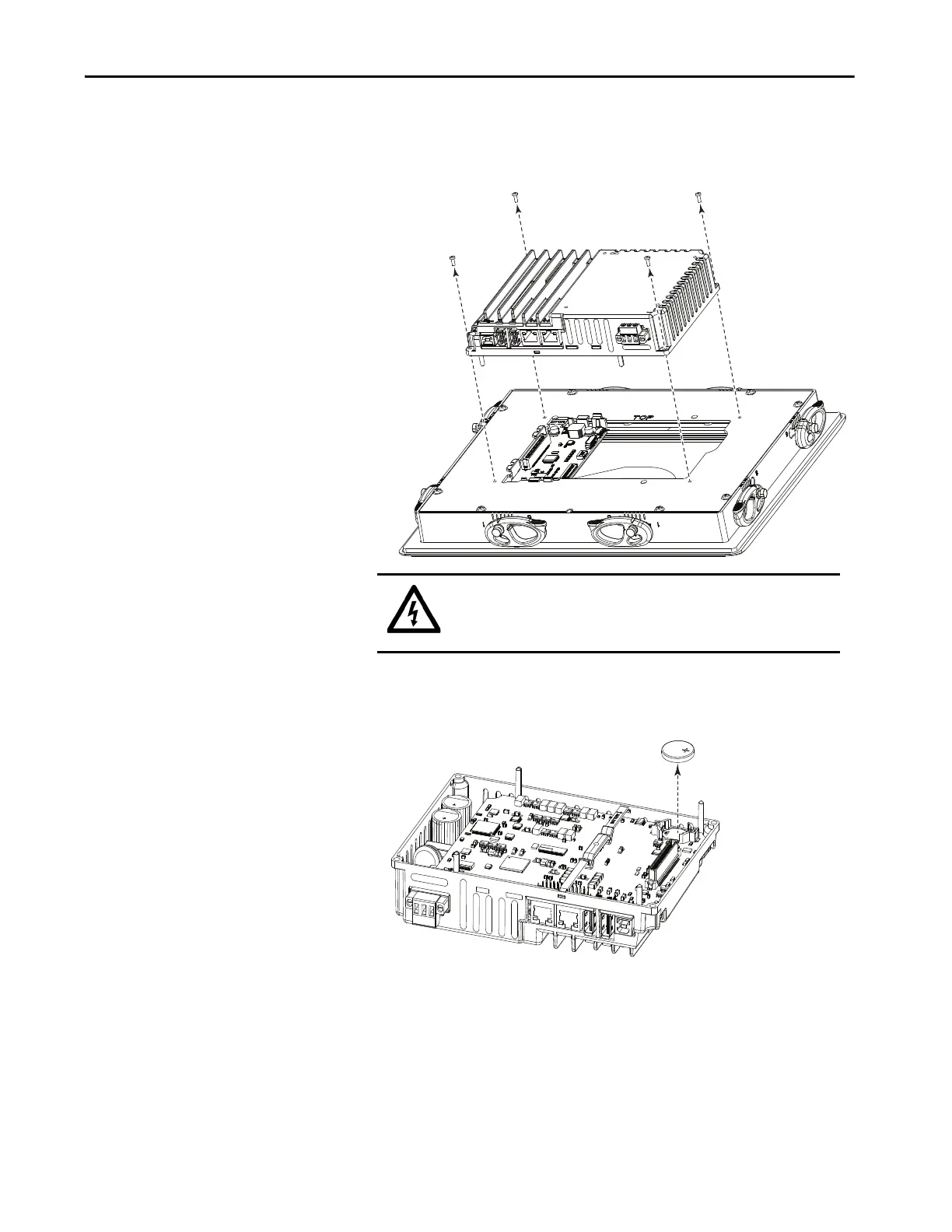

To replace the battery, follow these steps.
1. Disconnect power from the terminal.
2. Loosen the screws that secure the logic module to the back of the display.
3. Carefully lift the logic module away from the display module and turn over
to expose the circuit board.
4. Locate the coin-cell battery on the circuit board.
5. Remove the battery by lifting on the side of the battery.
6. Insert the new battery so the positive (+) polarity faces up.
SHOCK HAZARD: This equipment is sensitive to electrostatic discharge
(ESD).
Follow ESD prevention guidelines when handling this equipment.
Logic Module
Display Module
To Next Page
