Operator Interface Chapter 3

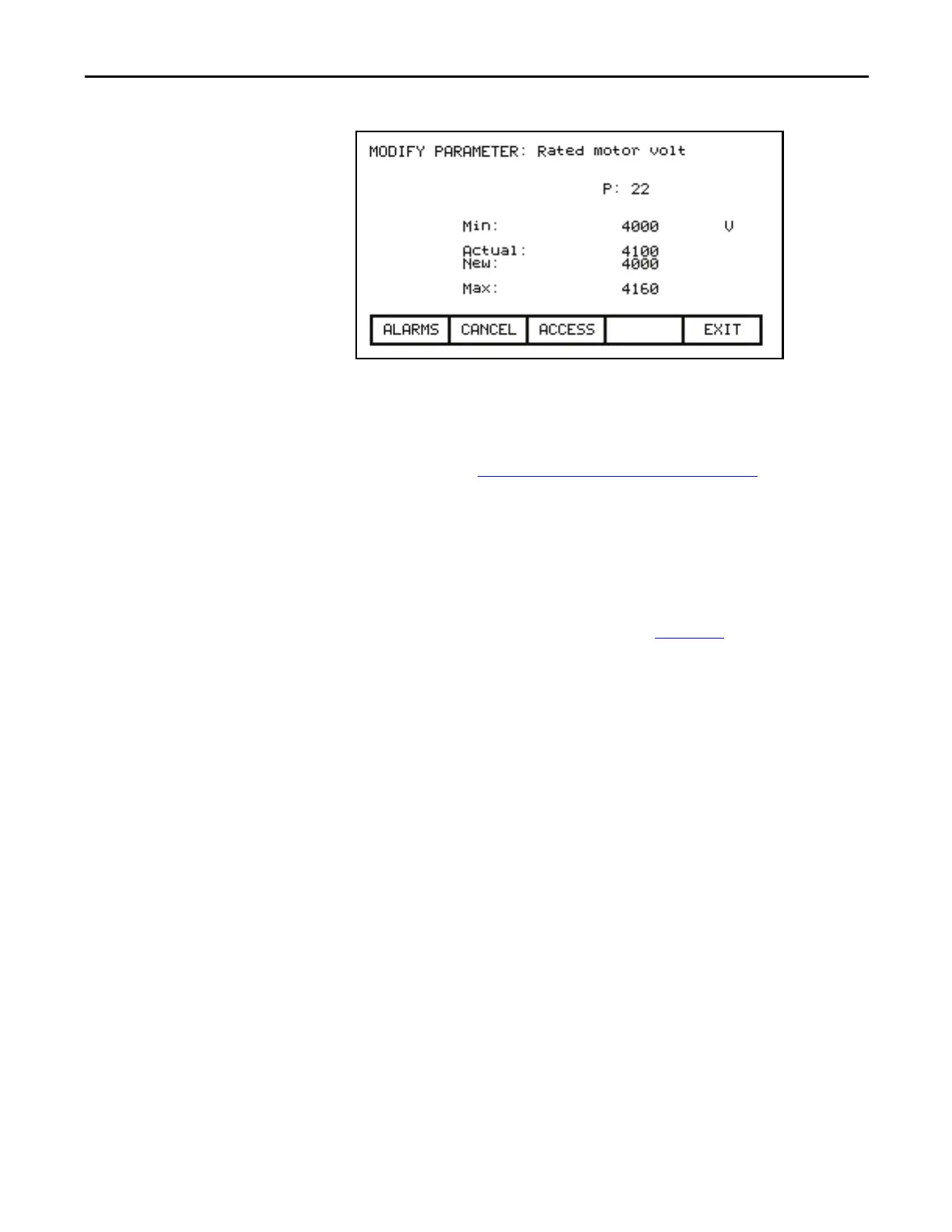

Figure 114 - Modify Numerical Value
To be allowed to make changes to the parameter, the operator interface must be
set to an Access Level other than 'Monitor'. (You will be able to view the screen;
however, pressing the data entry keys will have no effect). If you are not in the
correct level, press the [F8] key in order to gain access to the parameter. Refer to
the section entitled Enter/Modify an Access Level
on page 116 for further
information on the operation to change the level.
Having gained access, use the data entry keys [0]...[9] to enter the new value. The
[-] key can be typed at any time to enter a negative value. The [.] key is used to
enter a decimal point for fractional values. The entered new value can be edited
by pressing the [backspace] key. This key will delete the right most character
(e.g. number, decimal point or negative sign) shown on the screen. Press the
[enter] key to accept the new value as shown in Figure 114
. If the new value that
you entered is outside the limits defined, the new value will not change. For
example: If you entered 900 when the minimum value was 4000, the new value
will still show 4100.
Some data must be entered in HEX. To accomplish this, use the cursor up/down
keys to scroll through the values 0...F for the right most digit. To accept the digit
and enter to the right of the current digit, press the right cursor key. Press the
[Enter] key to accept the value.
The value may be edited the same as a value entered from the numeric keypad.
The new value is not sent to the drive until you exit the screen with the [F10] key.
Prior to this you can modify the new value by repeating the above procedure, or
you can cancel the change by pressing the [F7] key. The CANCEL operation
returns the new value to that of the actual value.
