Rockwell Automation Publication 7000L-UM301F-EN-P - March 2020 263
Commissioning Chapter 4

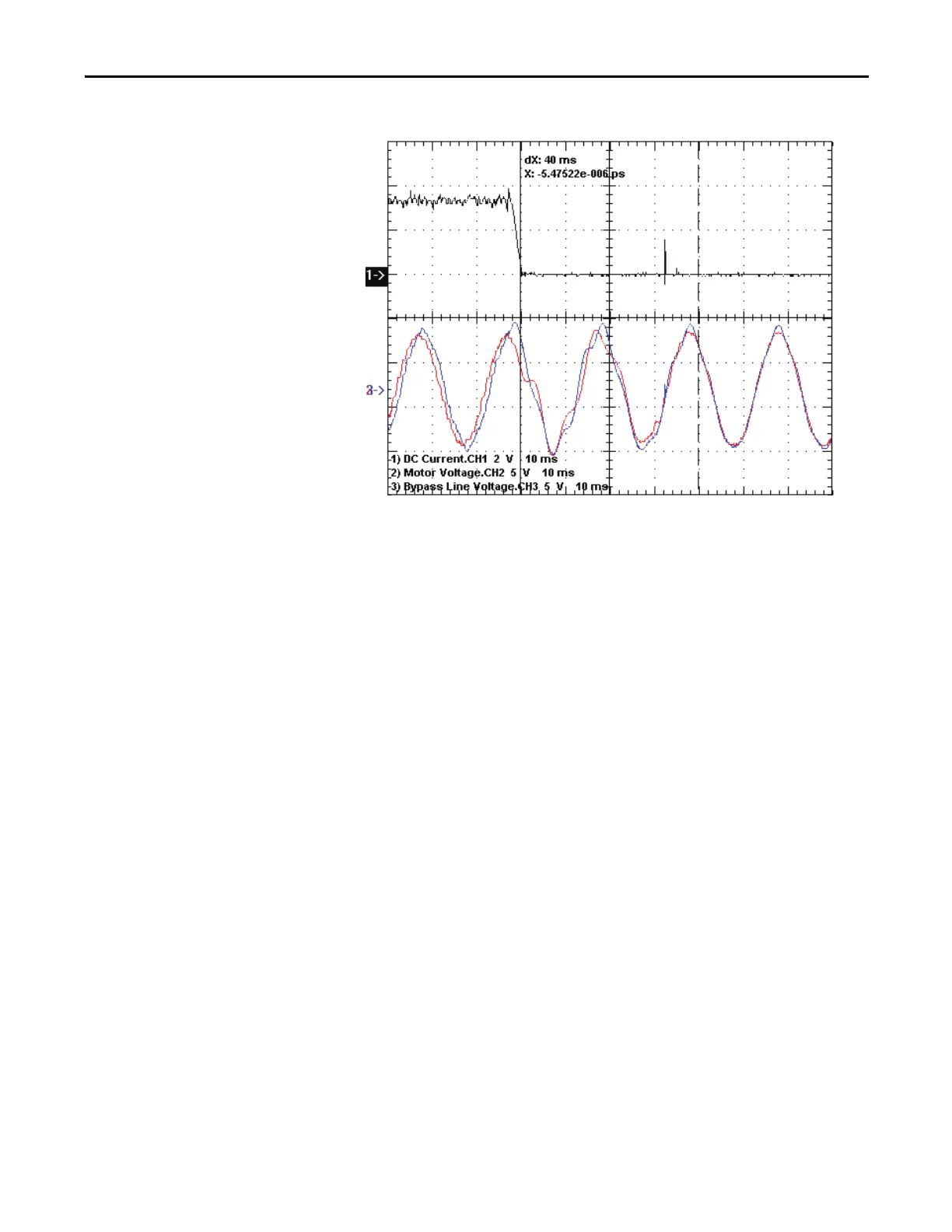

Figure 219 - Sample Waveforms
Live Synchronous Transfer Capture (50Hz System)
Ch1: Idc1 (yellow), Ch2: Vuv (blue), Ch3: Vuvs (red)
