376 Rockwell Automation Publication 7000L-UM301F-EN-P - March 2020
Chapter 5 Component Definition and Maintenance
Hit F10 (Access), and highlight Advanced. Press Enter, or enter the password
value (if password required) and you should have Advanced level access.

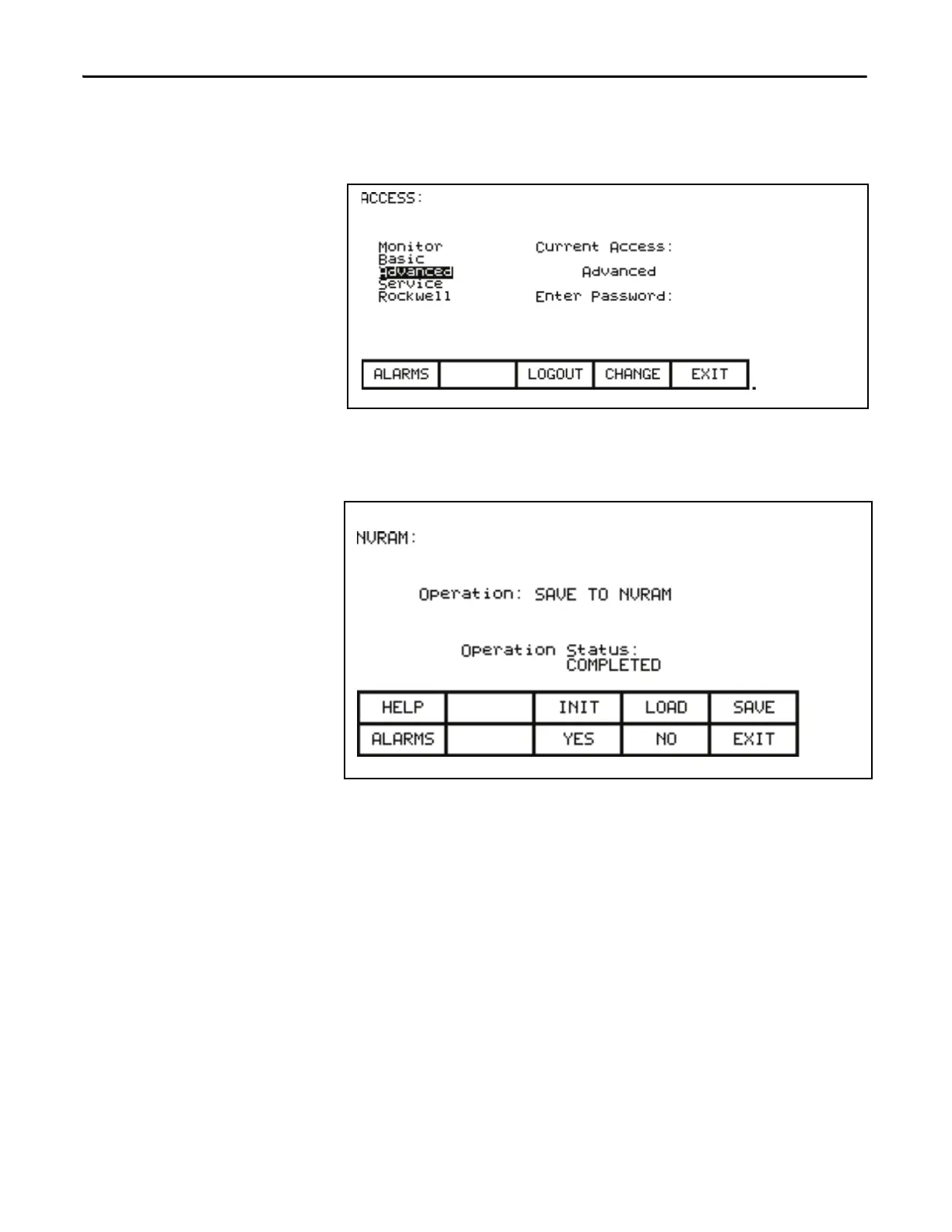

Figure 305 - Advanced Screen
Hit F10 to Exit, and then F5 for NVRAM. Press F5 for SAVE, and F8 for YES.
The parameters should now be saved to NVRAM. Press F10 again to EXIT.
Figure 306 - Save to NVRAM
To save to the Operator Interface Terminal and Flash Card, Press F2
(UTILITY), F7 (TRANSFER), and F4 (PARAMETERS). You should now be
on the following screen:
