Rockwell Automation Publication 7000L-UM301F-EN-P - March 2020 377
Component Definition and Maintenance Chapter 5

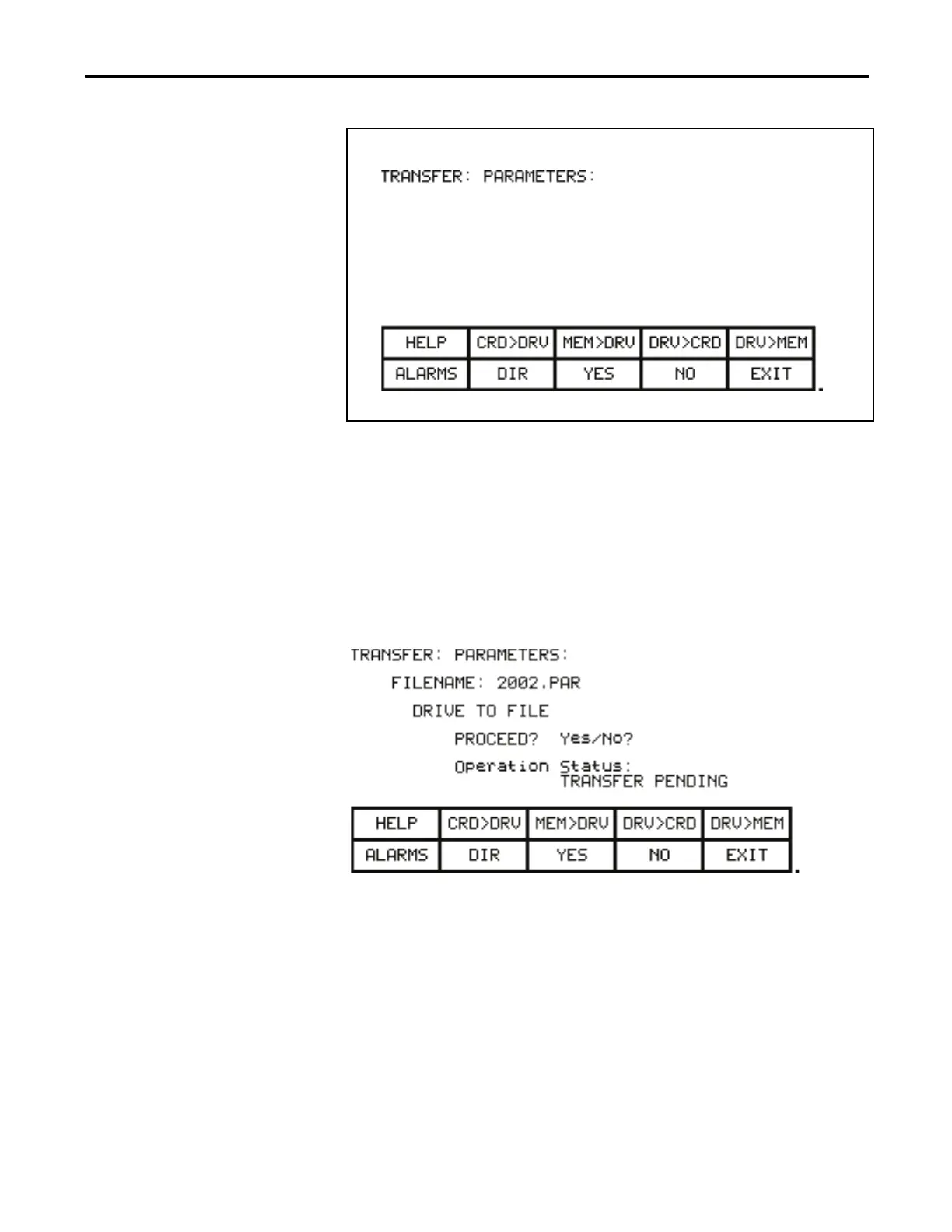

Figure 307 - Transfer: Parameters
In order to save parameters to the Operator Interface Terminal, press F5
(DRV>MEM). To save to the Flash Card, you must first insert the card in the
terminal. Remove the back cover and insert the card in the slot on the terminal.
It can only go in one way. Then press F4 (DRV>CRD).
Saving to the card means that you will have to choose a file name. Use the Up and
Down arrows to select the character, and then use the Right arrow to go to the
next character. Press the Enter key when finished.
Figure 308 - Transfer pending
Press F8 for YES, and the parameters will be transferred to the card. Press F10 to
EXIT.
Here is a typical pin out of a complete null-modem cable. Essentially, only 3 pins
(2, 3 and 5) are all that is required.
