Rockwell Automation Publication 7000L-UM301F-EN-P - March 2020 379
Component Definition and Maintenance Chapter 5
•Solid Green – when both LEDs are solid green, the Application firmware
is running.
•Flashing Green – when either D9 or both LEDs are flashing, the board is
in download mode. (If the DPM bootcode is ≥ 1.005, then only D9 will
be flashing and D11 will stay solid. But if the bootcode is ≤ 1.005, then
both LEDs will be flashing.)
After putting the drive in download mode, the following is the display on the
drive terminal:

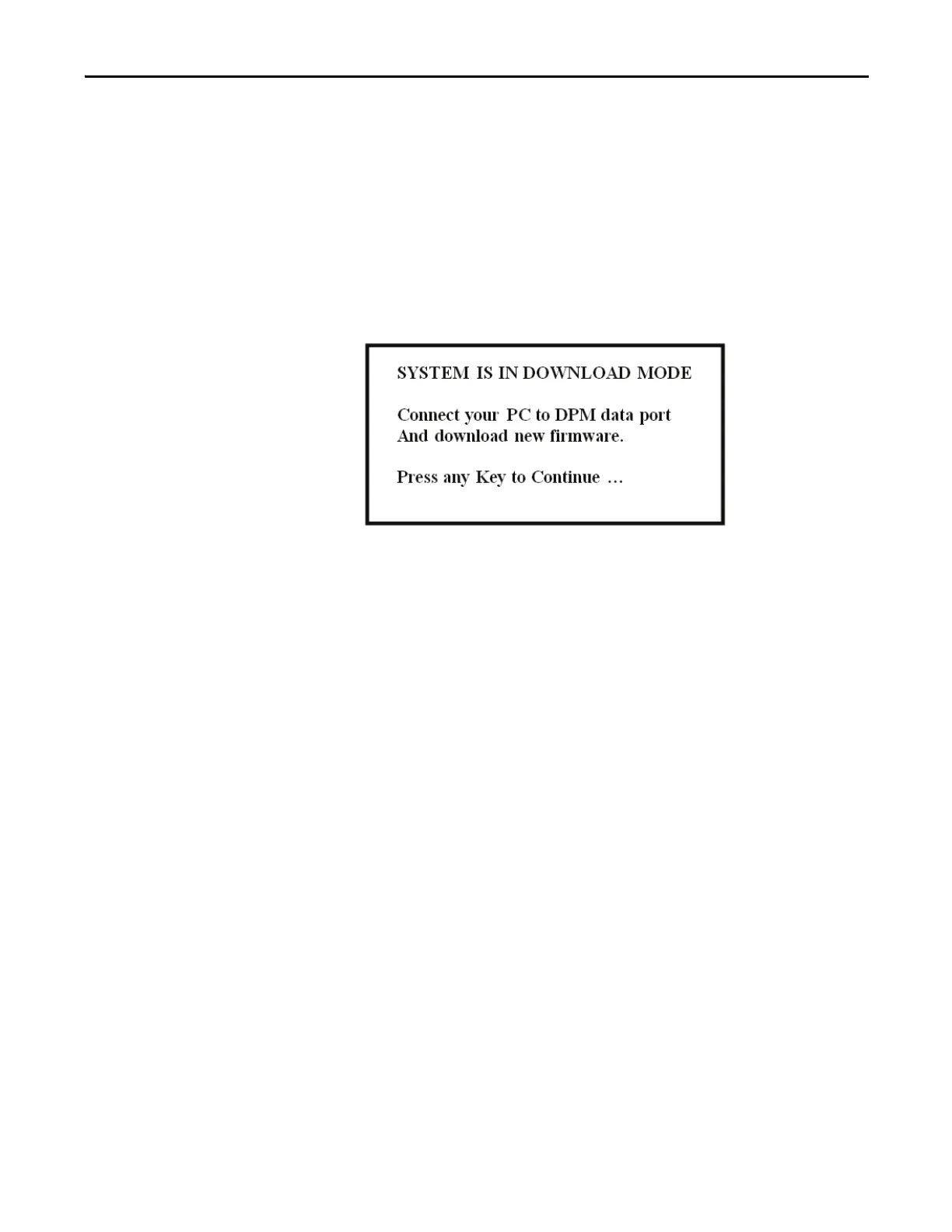

Figure 311 - System in Download Mode
If you press any Key after this message the PanelView will show “Communication
Error”.
Connect your PC to the DPM data port J4. Locate the PowerFlex 7000 Medium
Voltage Drive firmware file “PF7KFirmware7001_G.exe” and double-click to
download the file.
