4. From the Tr a ns f er menu, select Capture Text… as shown below.

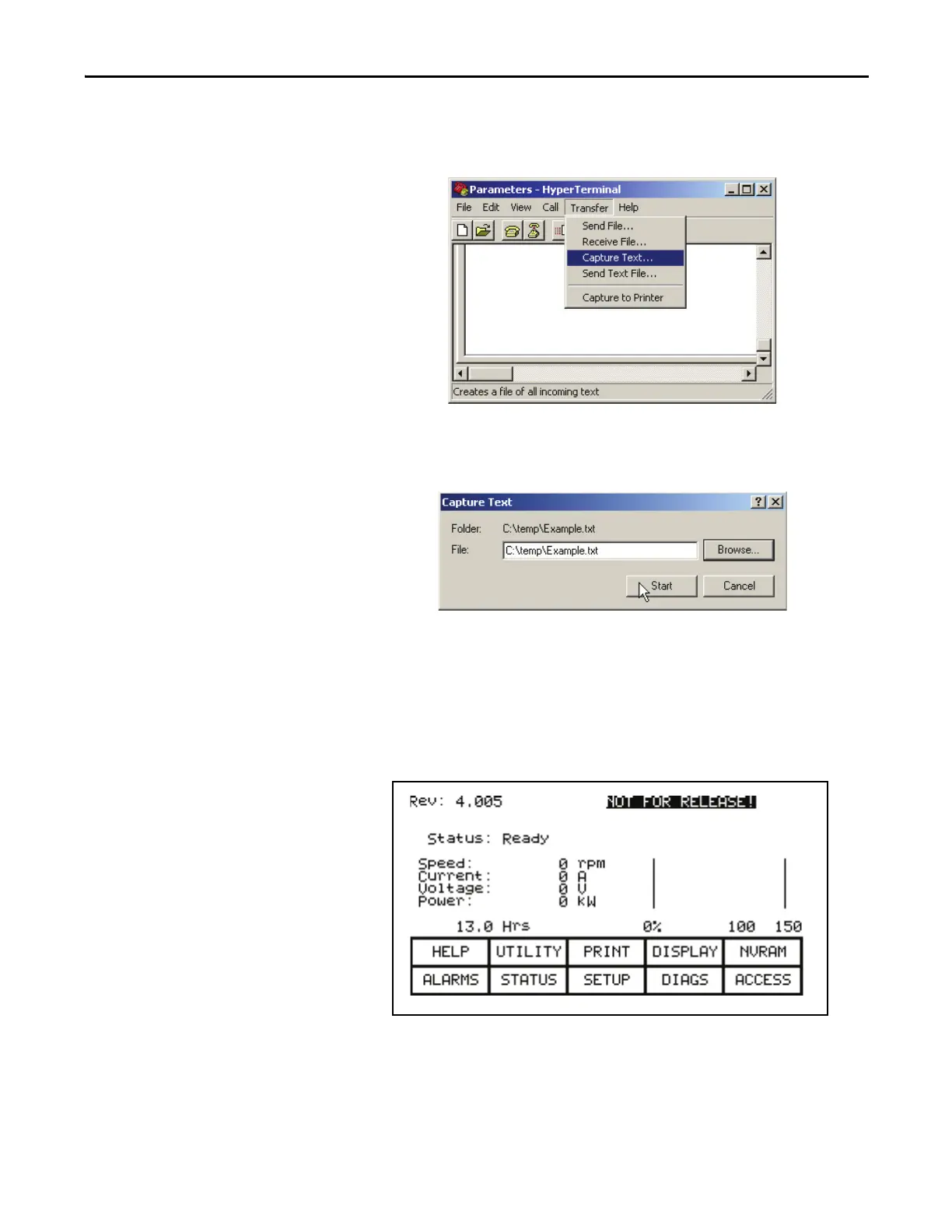

Figure 341 - Capture Text
5. The Capture Text dialog box will appear. Click on Browse button and
search the file Example.txt that you created in step 1 above.
Figure 342 - Open Text File
6. Click Start.
HyperTerminal now acts as a dummy printer and is waiting for the
information to be transmitted from the drive to the laptop.
7. From the drive Ter min a l , hit F3 (PRINT) at the main screen as shown
below:
Figure 343 - Terminal Screen
