Rockwell Automation Publication 7000L-UM301F-EN-P - March 2020 95
Operator Interface Chapter 3

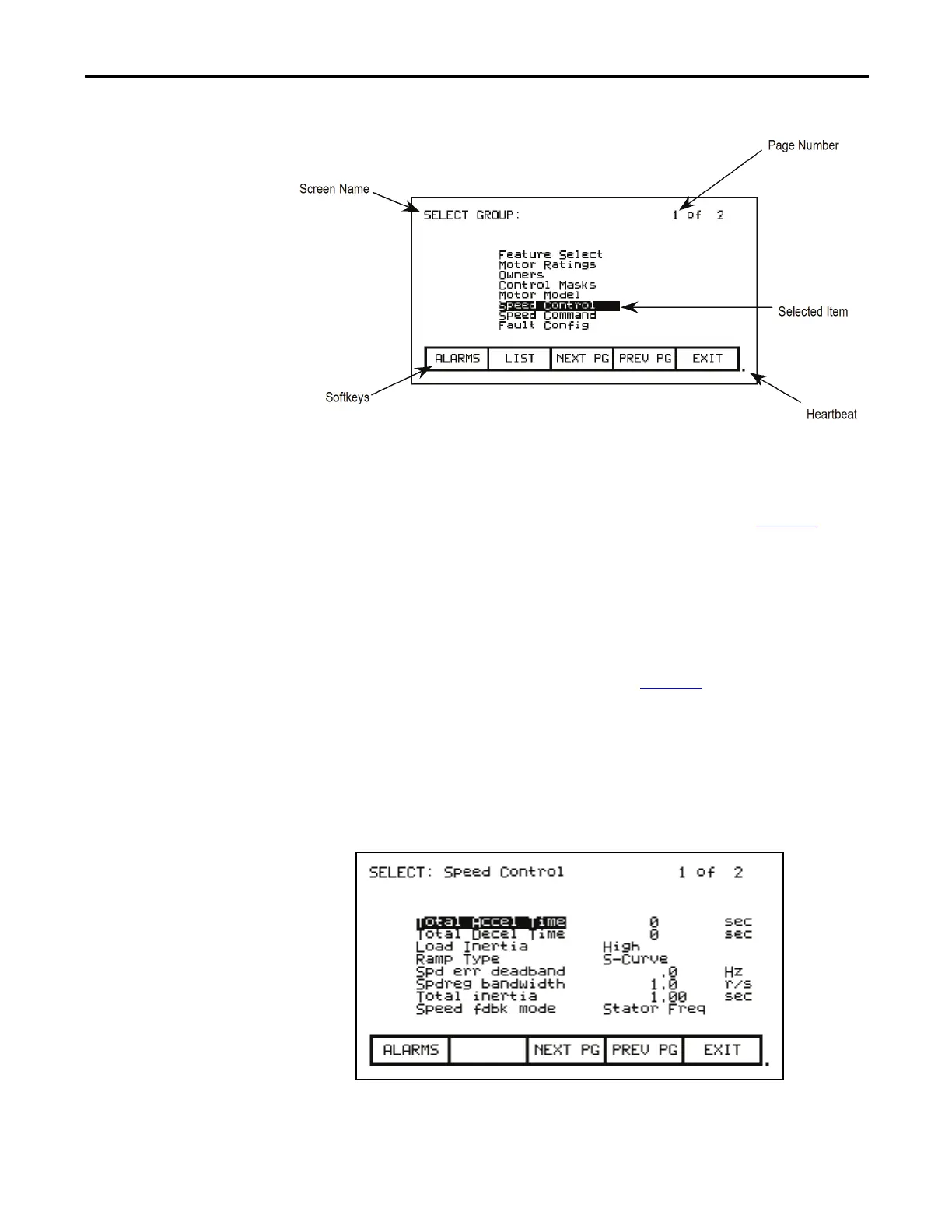

Figure 73 - Screen Components
The upper left-hand corner contains the name of the screen (i.e. SELECT
GROUP:). Knowing the name of the screen will assist you in the orientation of
the menu system. On some screens to the right of the screen name, will be the
name of the selected item from the previous screen as shown in Figure 74
.
Some screens have more than one page associated with them. The current page
number and the number of pages which make up the data currently being
displayed on the screen is shown in the upper right hand corner (e.g. showing
page 1 of 2 pages).
Along the bottom of the screen are one or two rows of 'Softkeys' which represent
the assignment to the actual function keys. In Figure 73
, Softkeys F6 through F10
are shown. Pressing F8 will display the next page of data.
In the very lower right-hand corner is a small dot. This dot indicates the healthy
state of the operator interface terminal. Under normal conditions this dot will
flash at a rate of .5 Hz. During communication errors, the dot will flash at a rate
of .1 Hz.
Figure 74 - Screen Name & Item
To Next Page
