Rockwell Automation Publication 2198-RM006A-EN-P - December 2020 27
Chapter 2 Servo Drive and System Comparisons
AC Input Power Cable
Length and Fuse Protection
This section provides information to assist you in determining the wiring and
fusing requirements of the drives.
AC Input Power Cable Lengths
In general, the recommended drive replacement should not require changes in
wiring length. However, the routing can need to change as the input power on
the Kinetix 5300 servo drive is located on the top of the drive, while the same
connection is located on the front of the Ultra3000 servo drive.
See Appendix A
, Connectors and Field Connections for a comparison of the
Ultra3000 servo drive and Kinetix 5300 servo drive terminals.

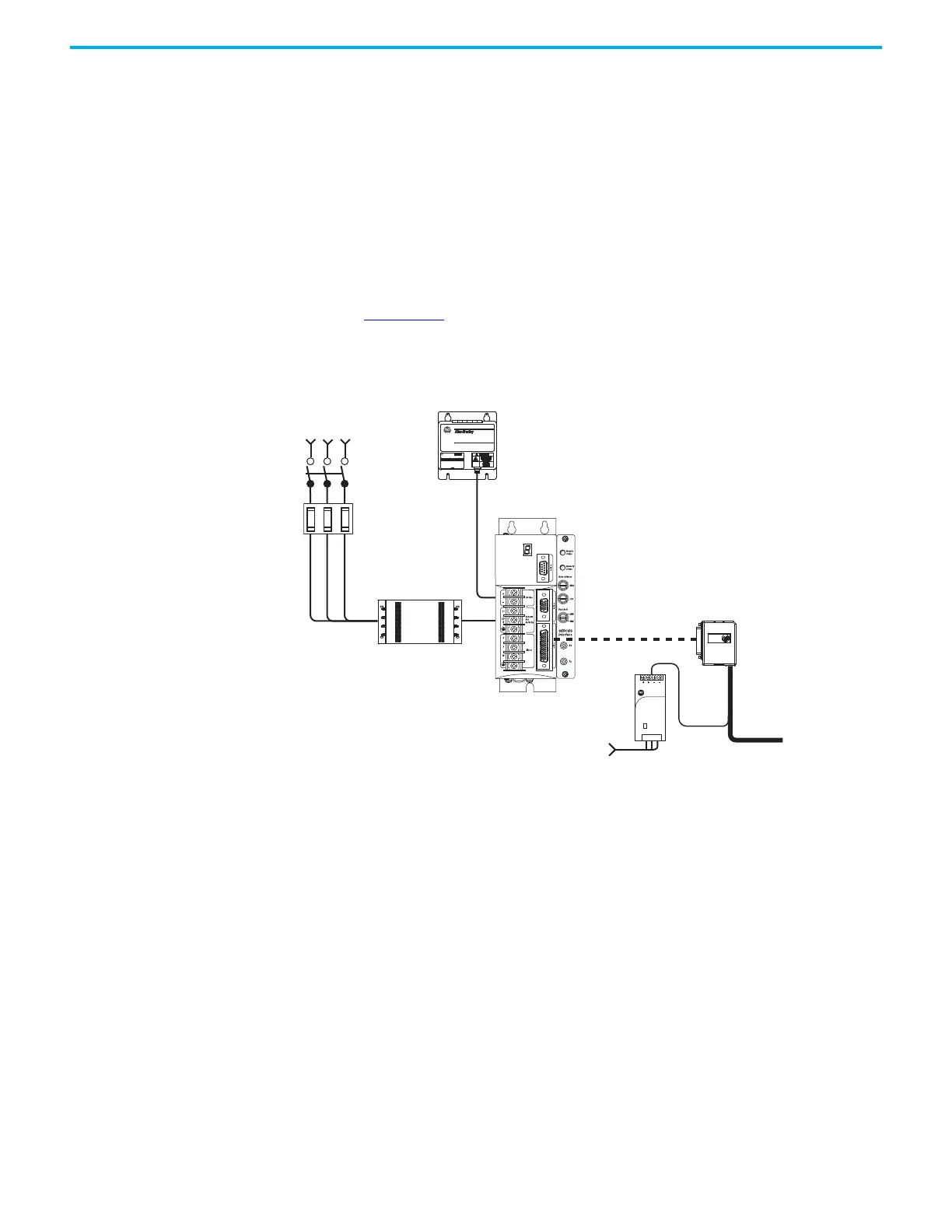

Figure 6 - Ultra3000 Servo Drive Input Power Example
BULLETIN 1394 300W SHUNT MODULE
ALLEN-BRADLEY
FOR USE WITH 1394-SJT22-X SYSTEM MODULE
CAT. PART SER.
INPUT DC INPUT AC
FOR FUSE REPLACEMENT USE:
BUSSMAN CAT. NO.
R
Shunt Module
1606-XL
Power Supply
Input
Allen-Bradley
