72 Rockwell Automation Publication 2198-RM006A-EN-P - December 2020
Appendix D Interconnect Diagrams
Figure 24 shows the power wiring diagram with 24V DC control string for
2098-DSD-HV030-SE, 2098-DSD-HV050-SE, 2098-DSD-HV100-SE,
2098-DSD-HV150-SE, and 2098-DSD-HV220-SE Ultra3000 Sercos drives.

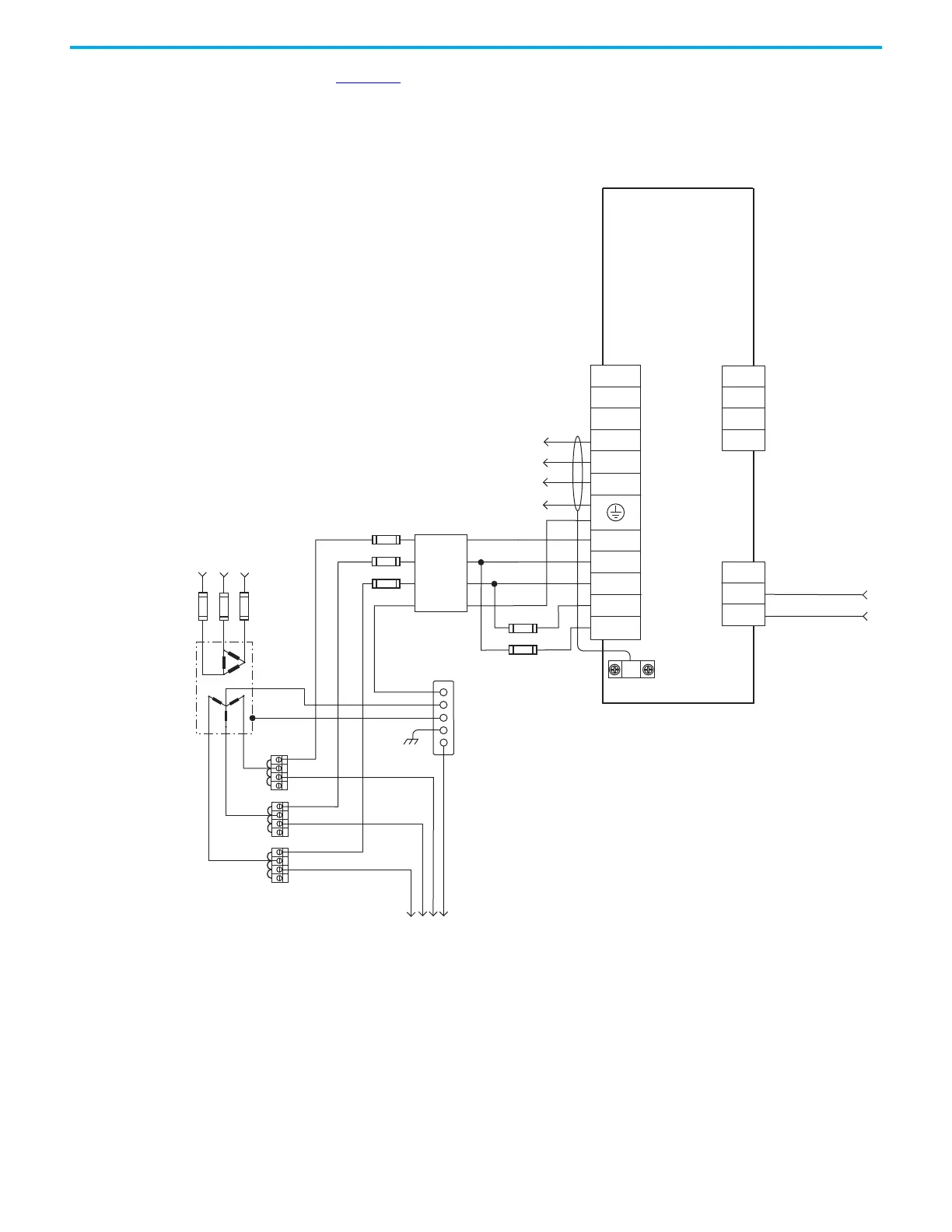

Figure 24 - Typical Power Wiring on Ultra3000 (460V) System
TB1
DC+
DC-
W
V
U
L2
L3
CN1
43
44
L1
TB2
1
2
3
L3
L2
L1
L1 AUX
L2/N AUX
Chassis
N.O. Relay Output+
N.O. Relay Output-
Neutral
External Passive
Shunt Connections
2098-DSD-HV030-SE
2098-DSD-HV050-SE
2098-DSD-HV100-SE
2098-DSD-HV150-SE
2098-DSD-HV200-SE
Ultra3000 Digital Servo Drives
Three-phase AC Line
50/60 Hz
Fused Disconnect
or Circuit Breaker*
Isolation
Transformer*
Three-phase Input
100…240V AC rms
Terminal
Blocks*
To additional
Ultra3000 Drive
* INDICATES USER-SUPPLIED COMPONENT
Three-phase
AC Line Filter
Input Fusing*
Input Fusing*
Bonded Cabinet
Ground Bus*
Three-phase
Motor Power
Connections
AC Input Power
Connections
Motor Power
Connections
Cable Shield
Clamp
