Installing a Communication Adapter E-5

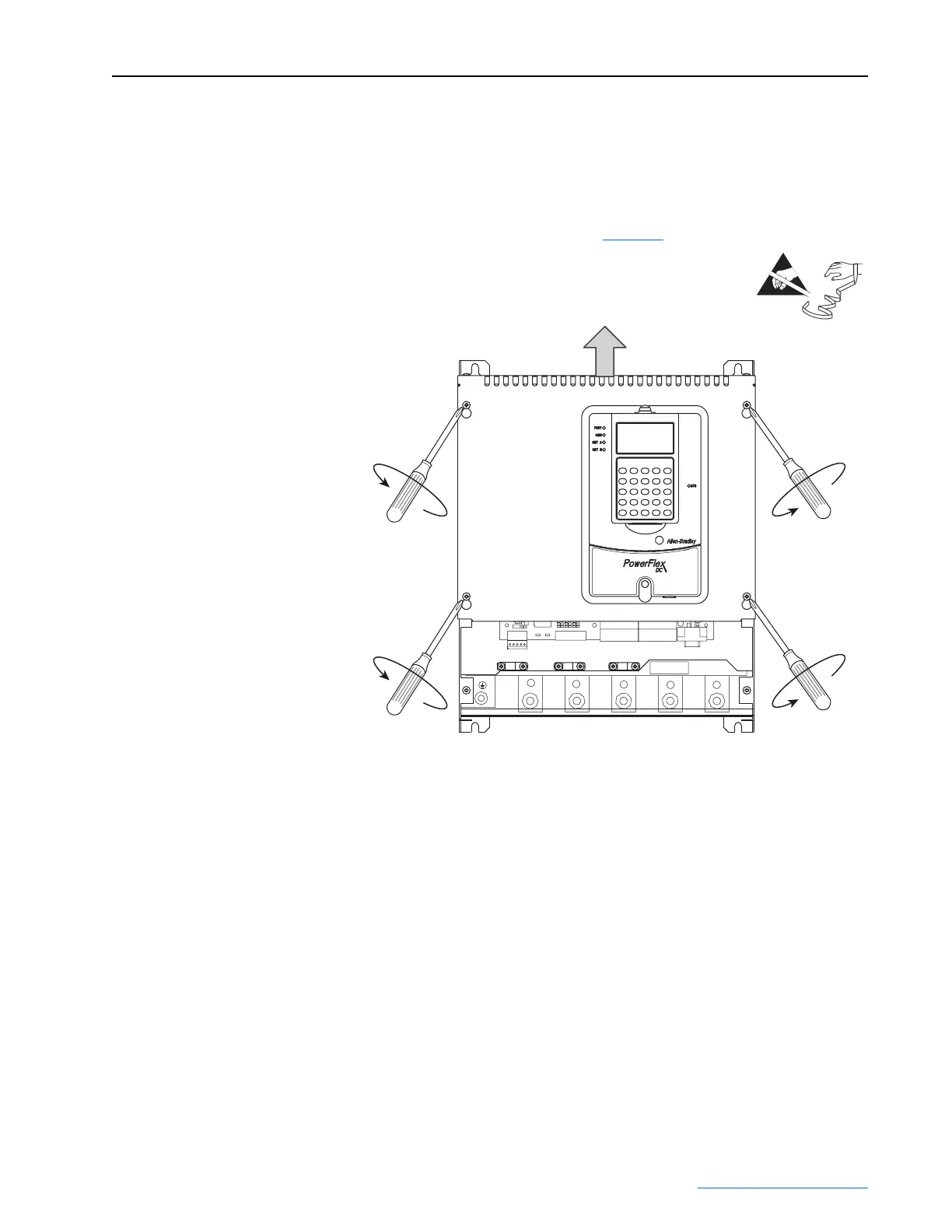

b. On frame B and C drives, loosen, but do not remove, the screws that
secure the top cover to the drive, then slide the cover up and off the
drive chassis.
Important:The HIM assembly is connected via a cable to the Control
board and therefore will not pull free from the drive until
disconnected. See page E-6
for instructions.
U
V
C
D
W
Frames B & C (Frame B shown)
=
