4 Technical Specifications
202208081959/V0.1
16 xMate ER7Hardware Installation Manual
4.4 Working space

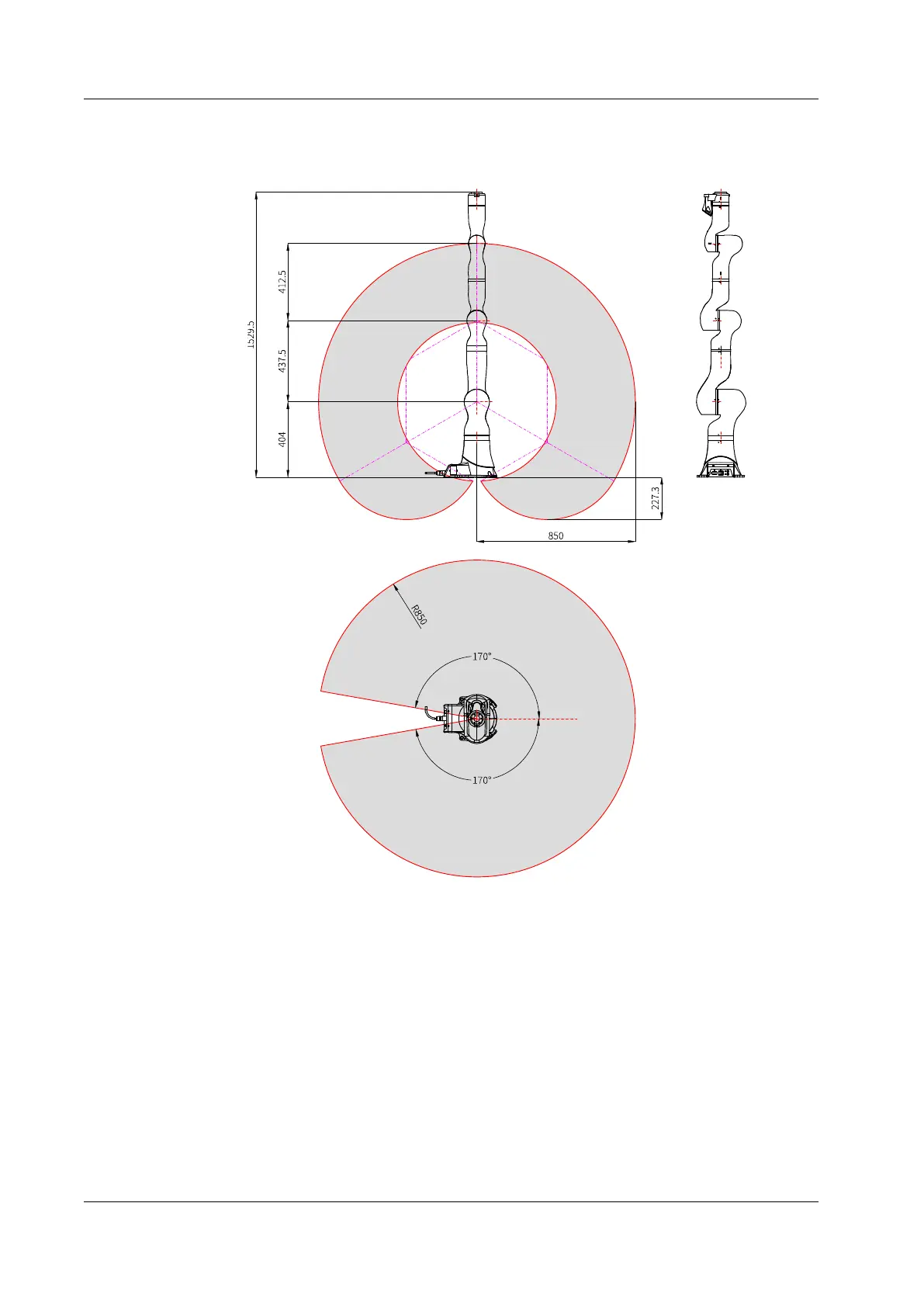

The working space of xMate ER7 is shown in the figure below.
Figure 8. The working space of xMate ER7
