Rollo Solar RT 200 - Motor Conversion Process; K-Motor to RT Drive Adapter

Page | 6
CONVERSION FROM K-MOTOR TO RT DRIVE
Adapter available separately from Rollo Solar

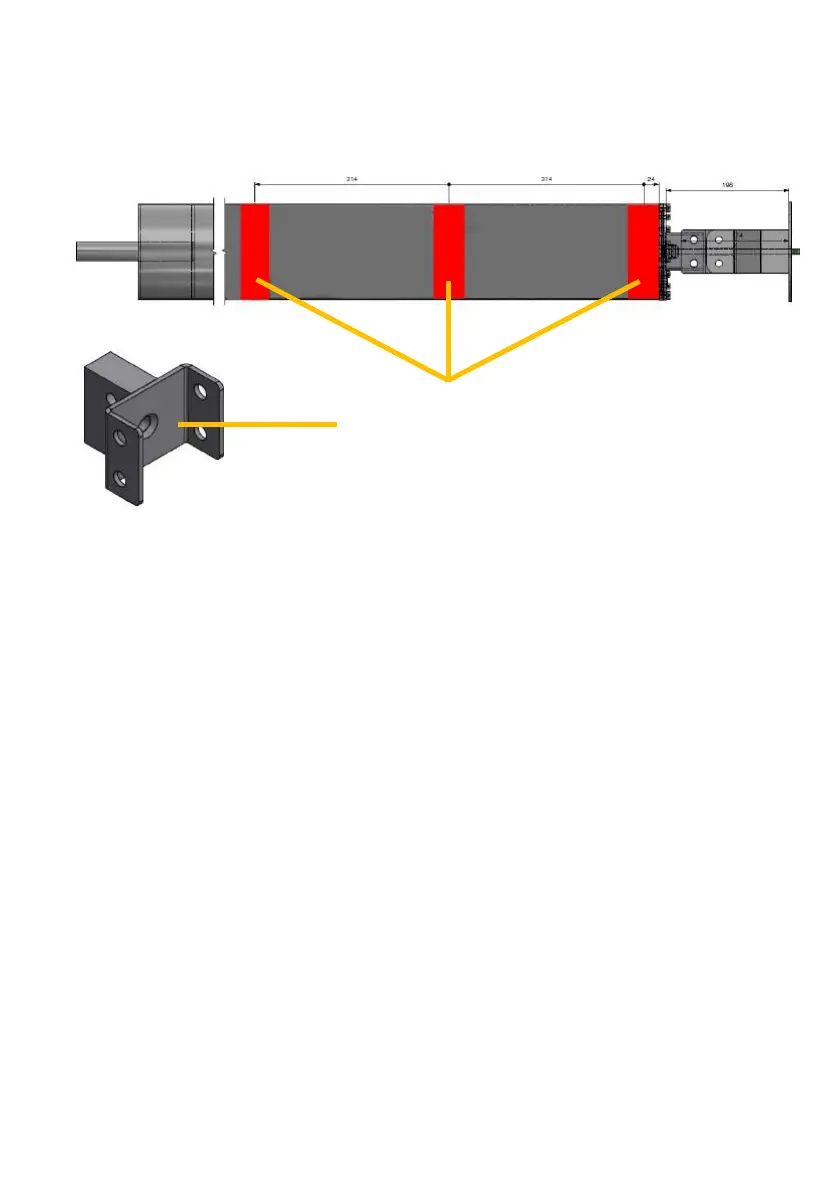

(1) Adapter
(2) Mounting location for POM discs
Installation steps
1. Use the enclosed screws to mount the adapter illustrated above (1) between
the existing pre-assembly component and the RT motor.
2. Mount the POM discs (2) as illustrated above; two POM discs are required for
the RT 200 and three POM discs are required for the RT 400.
1
2
