Rollo Solar RT 200 - Cable Routing Procedures; Drive to Clamping Flange Routing

Page | 7

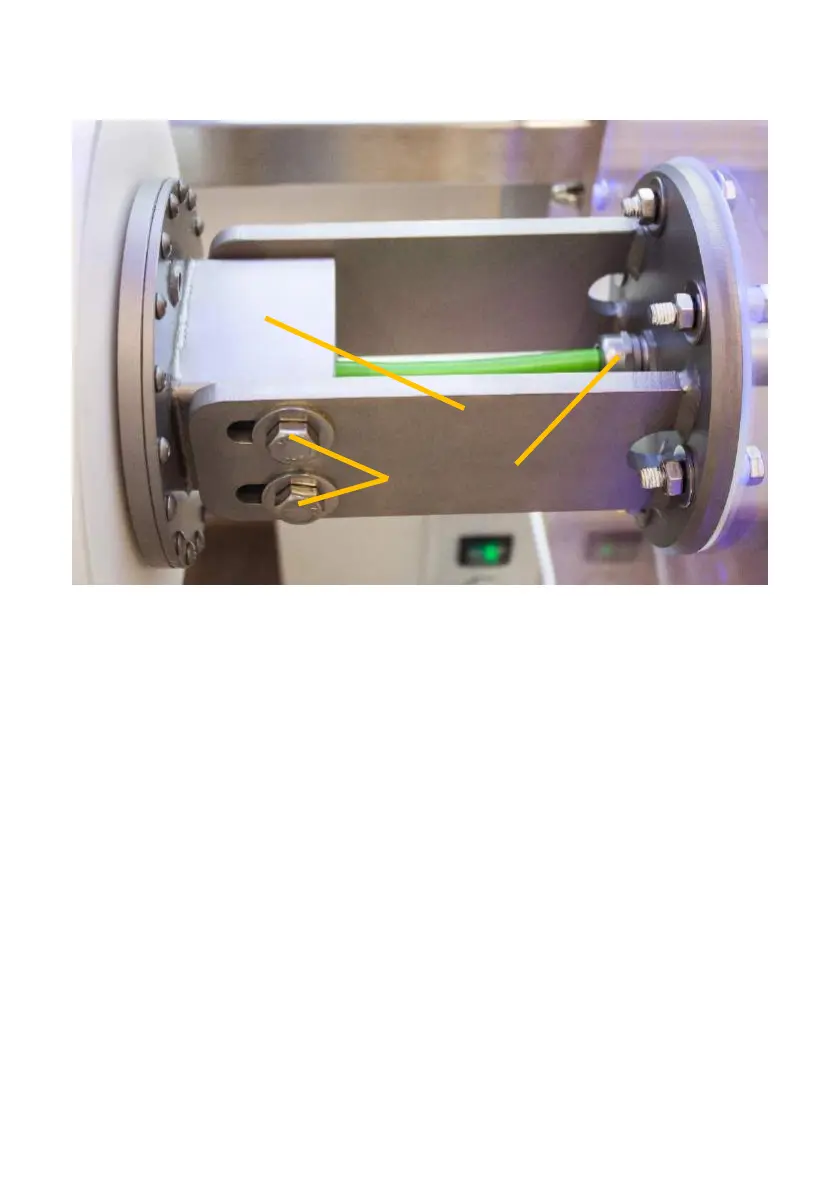

CABLE ROUTING BETWEEN DRIVE AND CLAMPING FLANGE
(1) Screw fitting (4 pieces)
(2) Clamping flange
(3) Metric cable gland
Installation steps
1. Use the four screw fittings (1) to mount the drive
in the clamping flange (2).
2. Guide the green drive cable through the metric cable gland.
3. Hand-tighten the metric cable gland using a VA universal pliers.
1
3
2
