CONNECTING THE RSC WIRELESS MODULE
Caution! Switch off the power to the RSC controller prior to installing the receiver board!

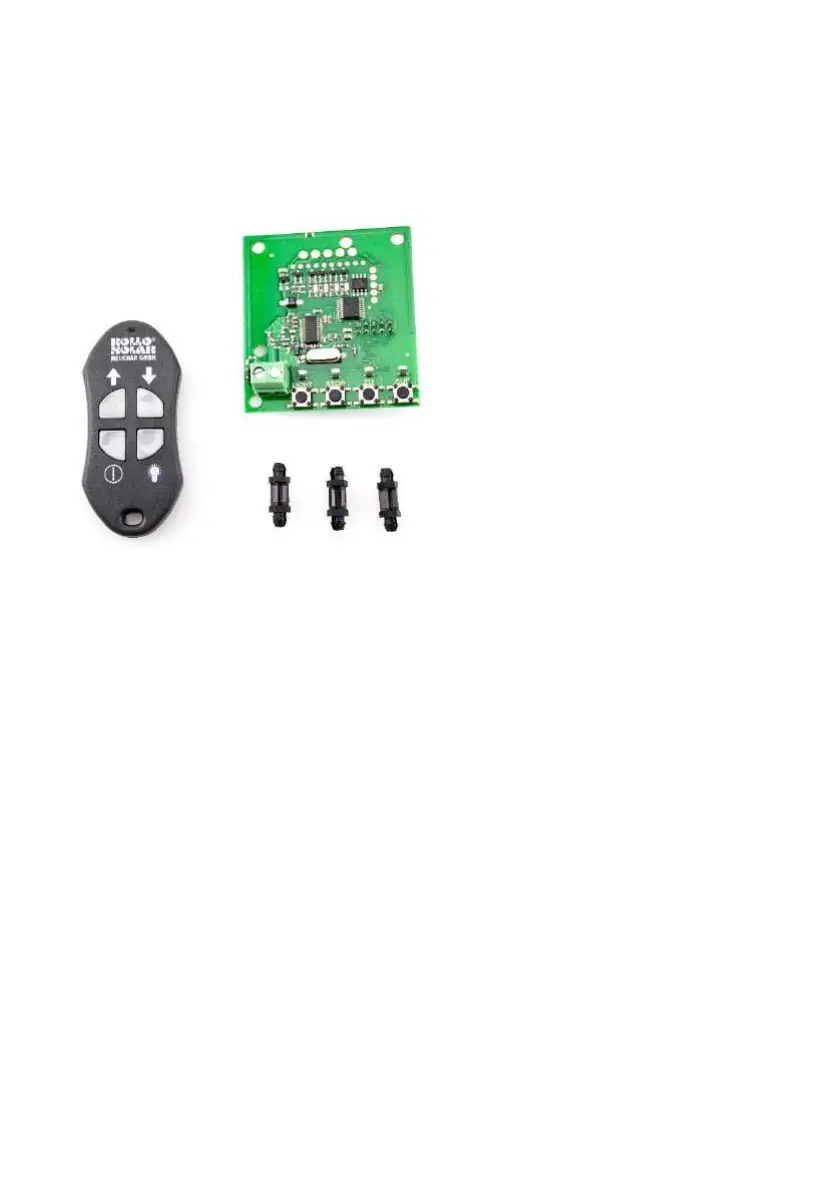

The remote control consists of several components:
• Handheld transmitter with operating buttons for opening, closing and stopping
the cover as well as an optional light function (only with version RSC-4)
• Receiver with programming buttons, on-board antenna, connector for external
antenna and jumper/bridge for selecting the internal/external antenna
• Operating instructions
Optionally available
• External rod antenna with 4 m connection cable
• External, receiver assembly box with transition board
