ALTERNATIVE ROUTING FOR THE CABLE
The cable can alternatively be routed directly into the technical system; in this case,
please put the distribution box in place and guide the cable through the distribution box
(see image).

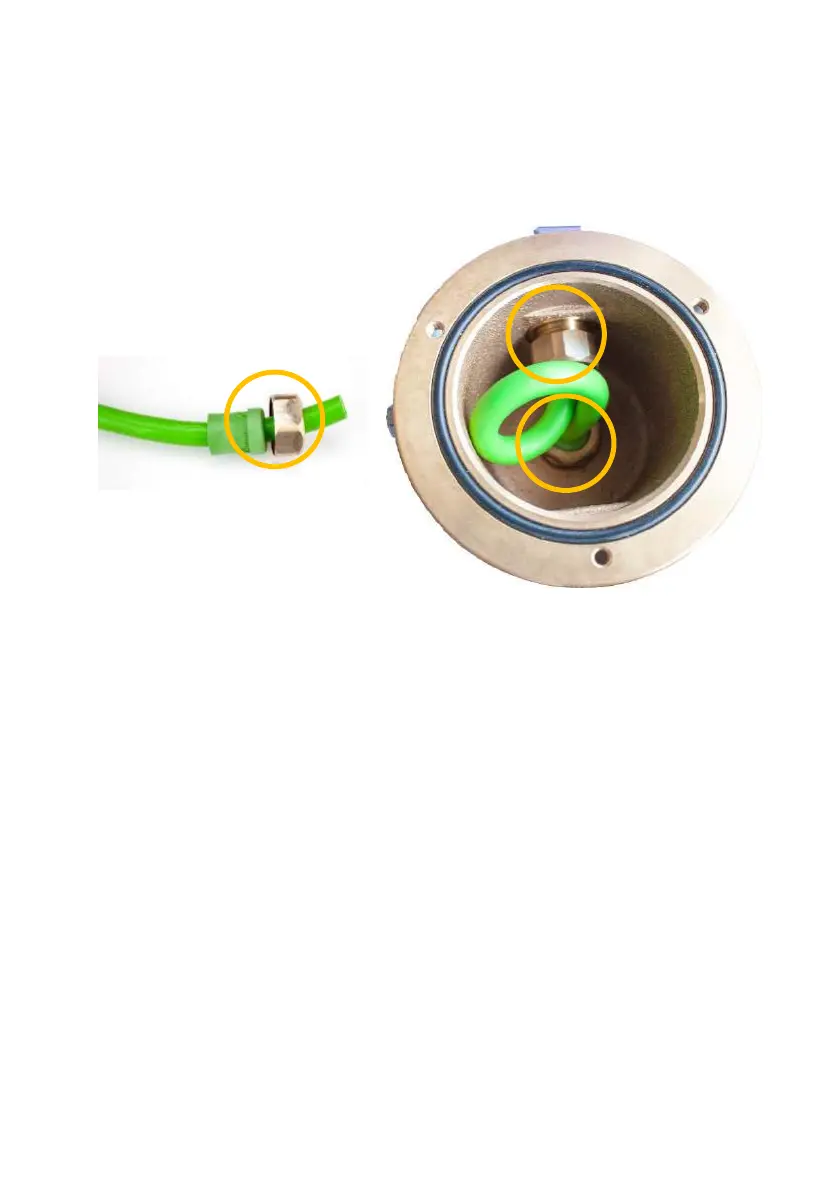

(1) Cable gland (2 pieces)
Installation steps
1. Slide the rubber plug (1) onto the respective end of the cable as shown
2. Hand-tighten the cable gland (1) using a VA universal pliers.
