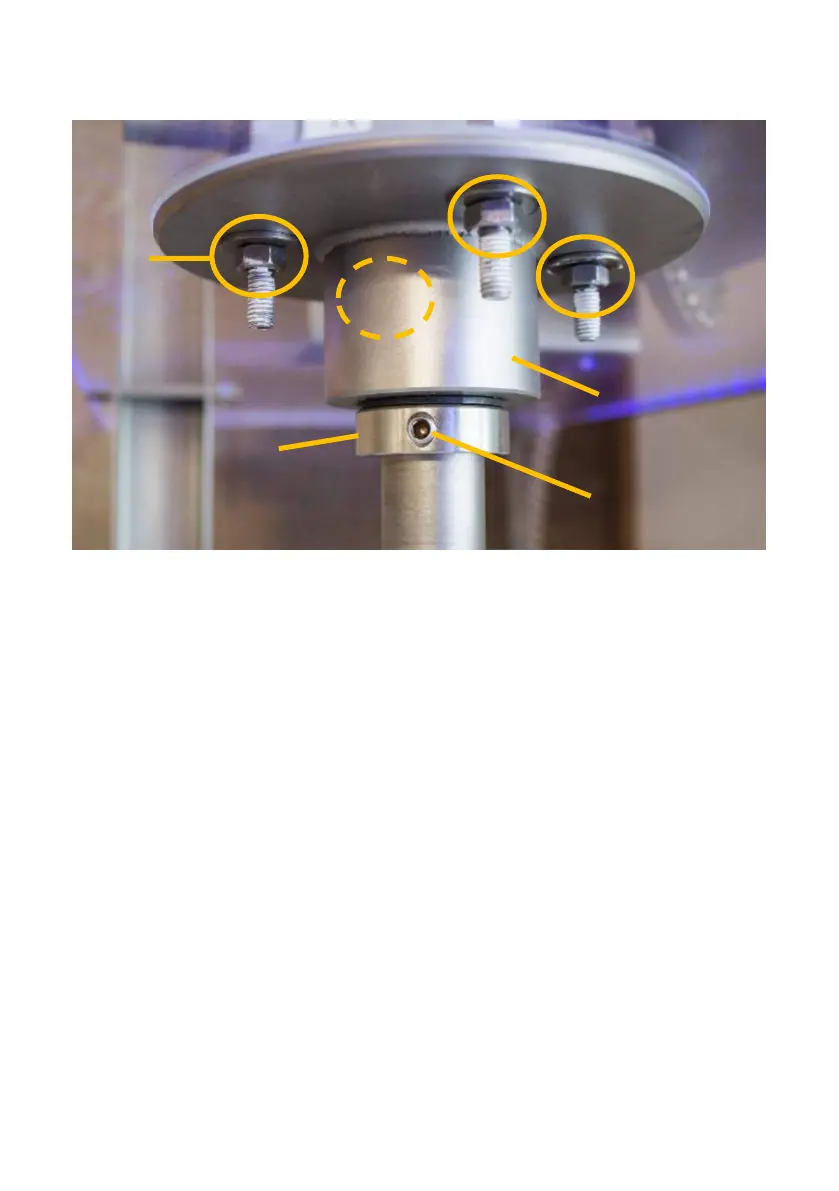

INSTALLING THE COUNTER BEARING (LOCKING THE SHAFT)
(1) Screw fitting (4 pieces)
(2) Set collar
(3) Counter bearing
(4) Locking screw
Installation steps
1. Lubricate the threaded bolts (1) with ceramic paste.
2. Use a VA ring spanner and the corresponding spanner size (M8 or M10) to
tighten the six screw connections (1) in a crosswise sequence.
3. Make sure that the pre-mounted set collar (2) fits tightly against the counter
bearing (3).
4. Secure the set collar against slipping and use a VA Allen key to tighten the
locking screw (4).
