Page | 8

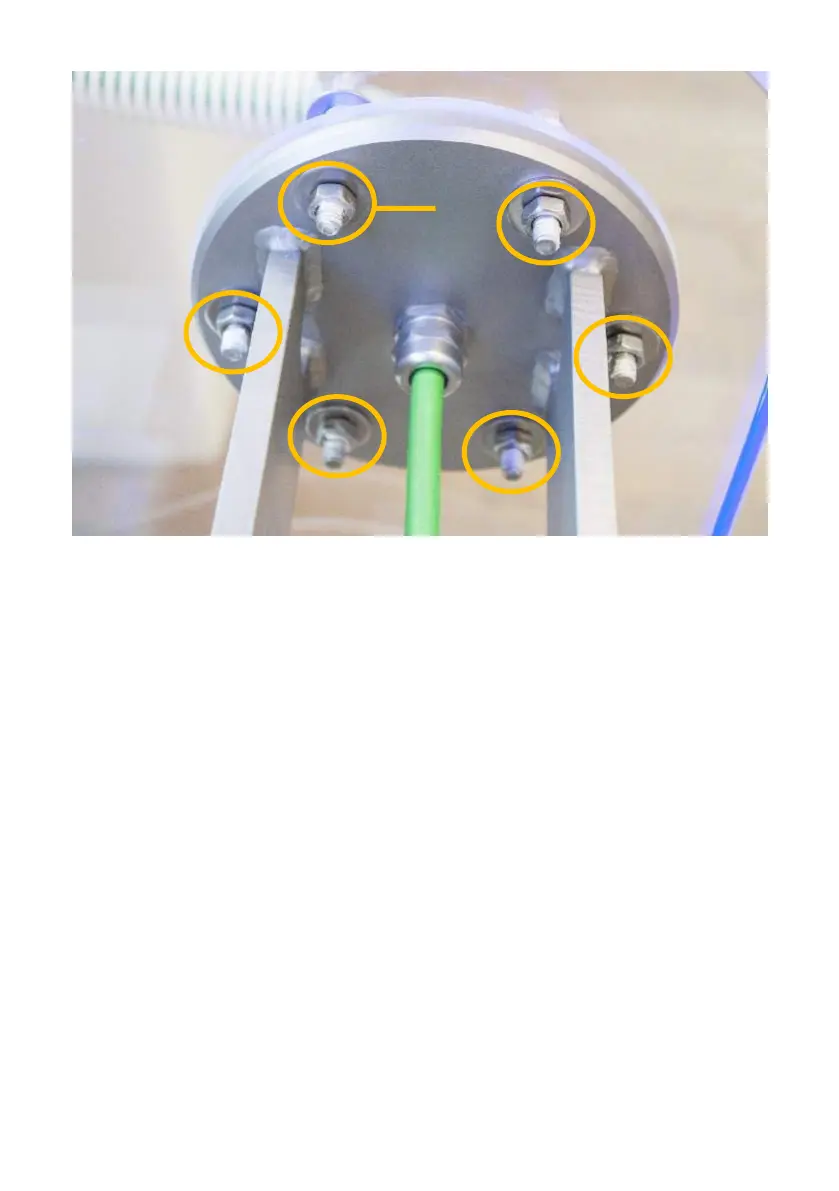

(1) Screw connection (6 pieces)
Variable: Nuts + washers or hexagonal screws + washers
Installation steps
1. Lubricate the threaded bolts (1) with ceramic paste.
2. Use a VA ring spanner and the corresponding spanner size (M8 or M10) to tighten
the six screw connections (1) in a crosswise sequence.
Please note: The screw fittings vary depending on the design of the pre-assembly
flange, e.g. nuts + washers or hexagonal screws + washers.
