Rollo Solar RT 200 - Drive Cable Insertion; Cable into Distribution Box

Page | 12

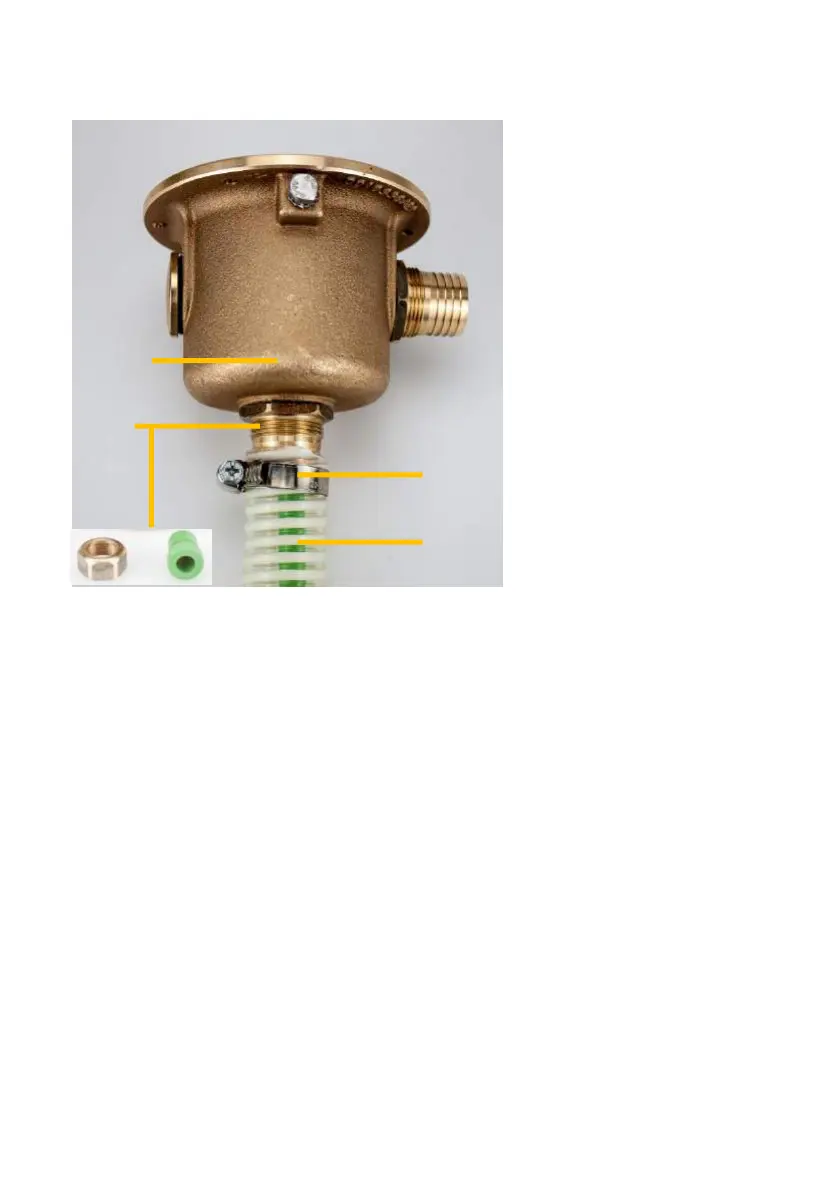

INSERTING THE DRIVE CABLE
(1) Distribution box
(2) Connecting piece with internal cable gland
(3) Tube clamp
(4) Flexible tube with cable (drive direction)
Installation steps
1. Remove the internal cable gland (2)
2. Insert the cable through the flexible tube (4) and connecting piece (2)
into the distribution box (1)
3. Slide the tube clamp (3) over the flexible tube (4)
4. Tighten the tube clamp (3) with a VA Phillips screwdriver
4
3
2
1
