DIRECTION OF ROTATION OF THE SHAFT

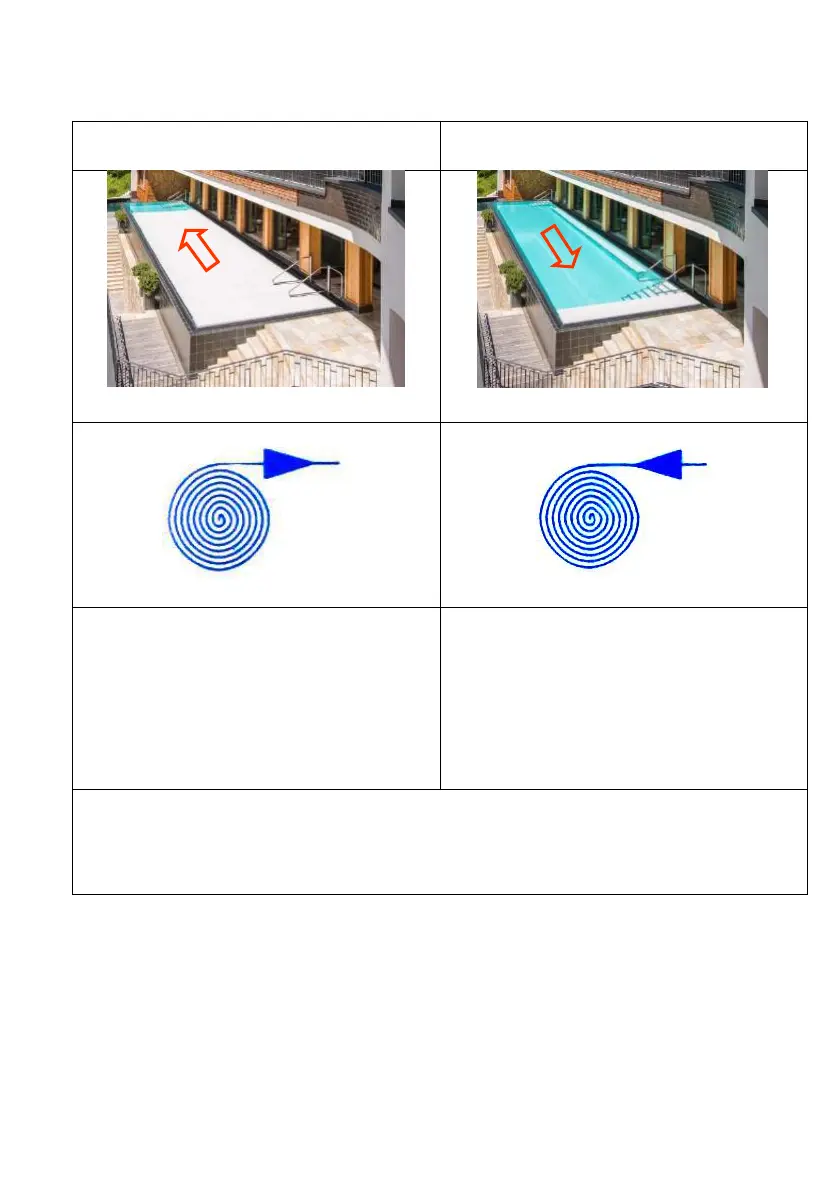

‘ZU’ (CLOSED) – no swimming
‘AUF’ (OPEN) – ready for swimming
‘ZU’ (CLOSED) means that the swimming
pool cover is rolled out from the shaft and
the swimming pool is covered as illustrated
in the image to the left.
‘AUF’ (OPEN) means that the swimming
pool cover is rolled onto the shaft and the
swimming pool is open as illustrated in the
image to the right.
Please note: If the winding directions of the circuit board and switch do not correspond to
one another, the connections for the ‘AUF’ and ‘ZU’ switch on the control board must be
swapped.
