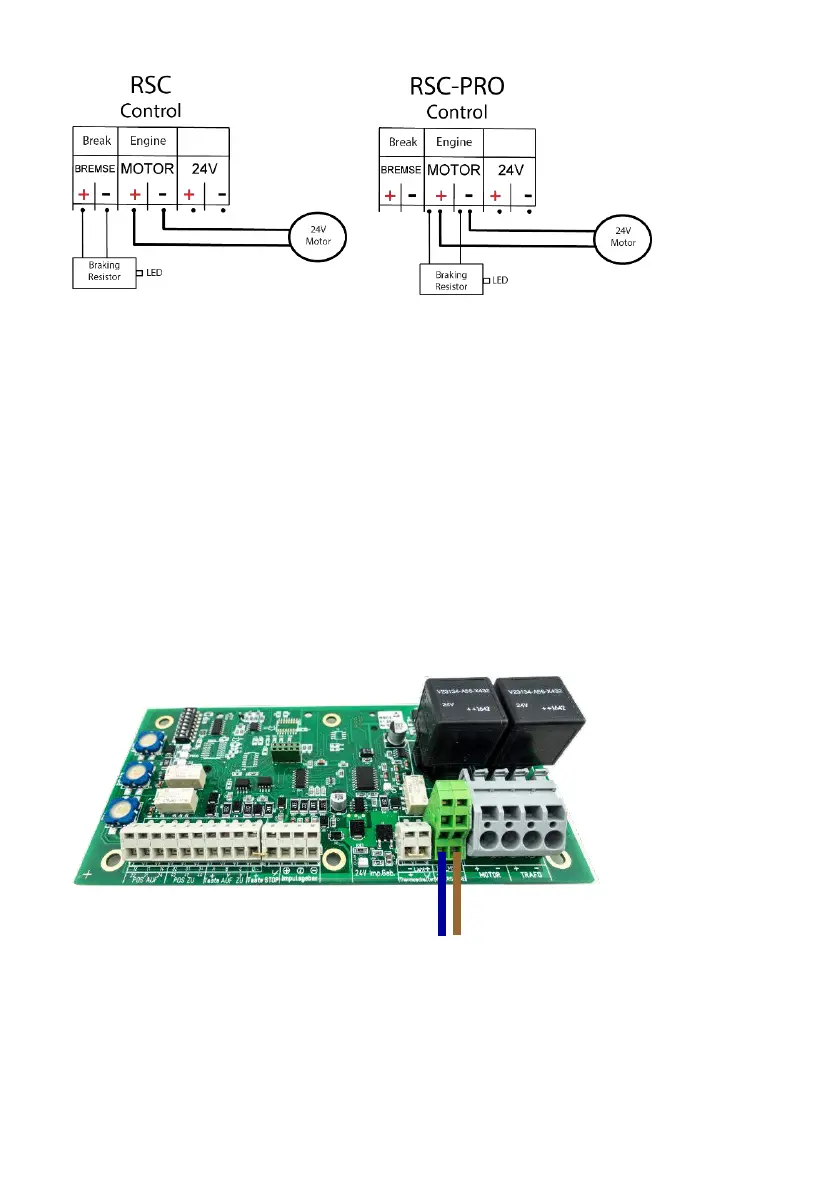

Compensation resistor for direct drive (RT)
Connection directly to brake clamp +/- on the RSC control
Connection directly to brake clamp +/- on the RSC-PRO control,
parallel to the drive
Red LED must light up when Rollo closes pool (Pool Covered),
If necessary, replace connecting wires for directional adjustment.
Break at least two ventilation holes.
Braking resistor prevents overvoltage build-up by the buoyancy of the pool cover!
Installation steps
1. Connect the braking resistor as shown on the circuit diagram
Caution! Make sure that the red LED on the housing of the braking resistor is illuminated
when the roller shutter is closing (‘CLOSED’); swap connecting wires if necessary.
