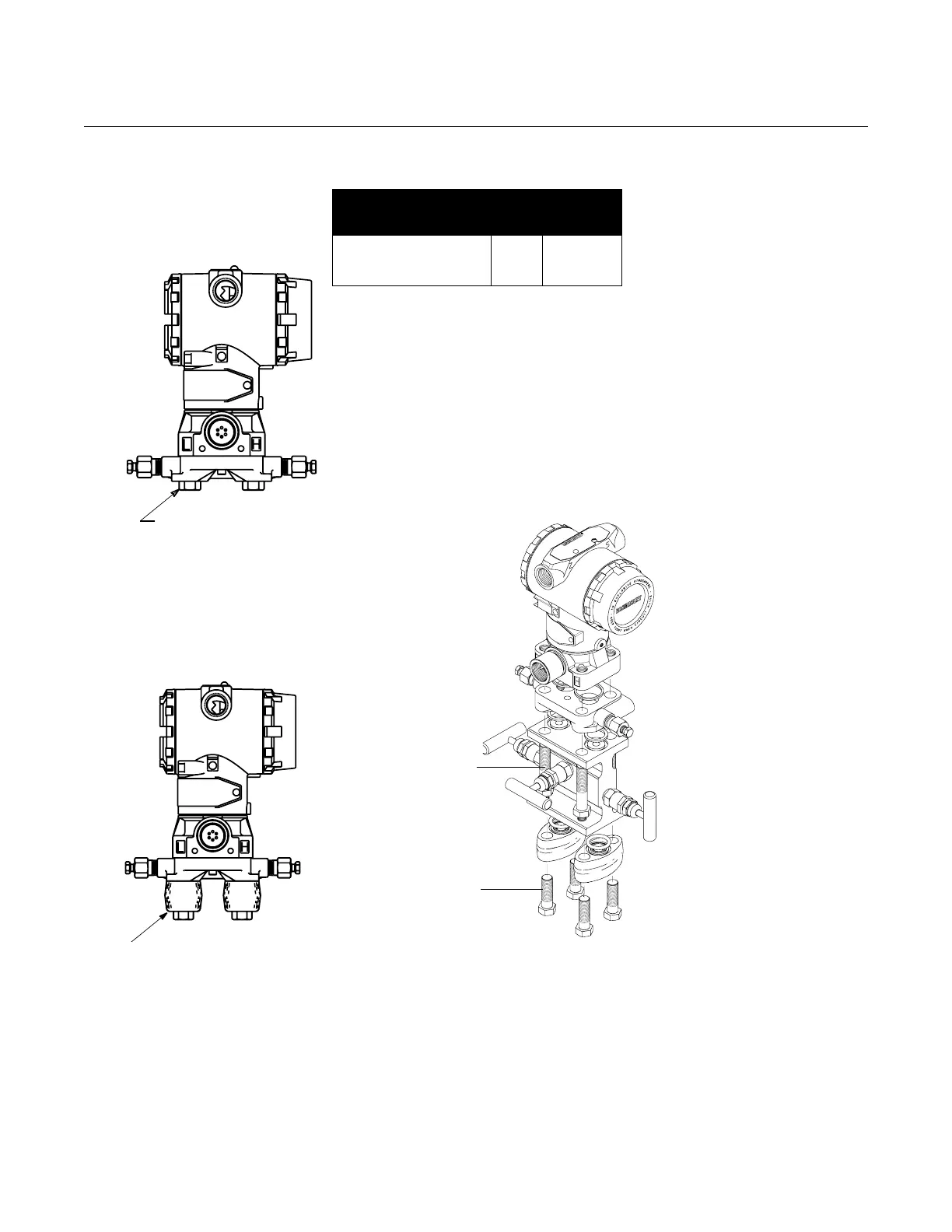

Figure 2-3. Optional Mounting Brackets and Mounting Configurations
1.75 (44) x 4
2.25 (57) x 4
TRANSMITTER WITH 3-VALVE MANIFOLD
MANIFOLD/FLANGE BOLTS
FLANGE ADAPTERS
AND FLANGE/ADAPTER BOLTS
NOTE
Dimensions are in inches (millimeters)
Description Qty.
Size
in. (mm)
Flange bolts
Flange/adapter bolts
Manifold/flange bolts
4
4
4
1.75 (44)
2.88 (73)
2.25 (57)
2.88 (73) x 4
TRANSMITTER WITH
OPTIONAL FLANGE ADAPTERS
AND FLANGE/ADAPTER BOLTS
TRANSMITTER WITH
FLANGE BOLTS
1.75 (44) x 4
