Rosemount 3095FB
At the end of this procedure, the process temperature input is enabled, and
the process temperature register will contain the current measured
temperature. If an RTD failure occurs, the temperature entered in step 3 will
be stored in the process temperature register. In addition, “RTD is
Disconnected” exception handling status bits will be set (Section 8.0 in the
Modbus Protocol Guide located in chapter 3 of the manual).
Diagnostics Menu Read Outputs…
This screen displays continuously updated readings for the process variables.

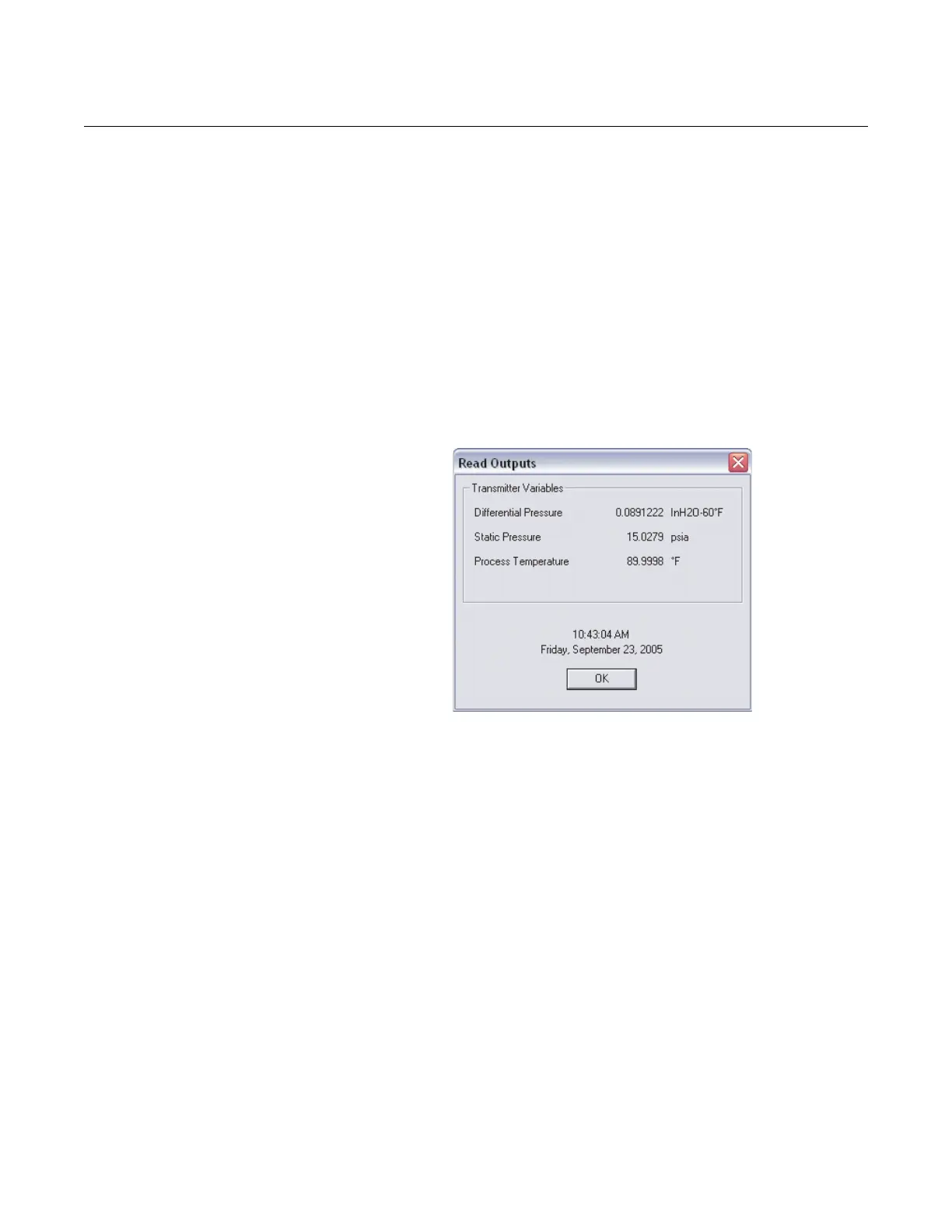

Figure 4-18. Read Outputs Screen
Diagnostics > Device Info > Module Info…
The module information screen displays read-only information about the
sensor module.
