Rosemount 3152 - Page 55

Reference Manual
00809-0100-4835 Rev BD
July 2016
Rosemount 3150 Series
5-4

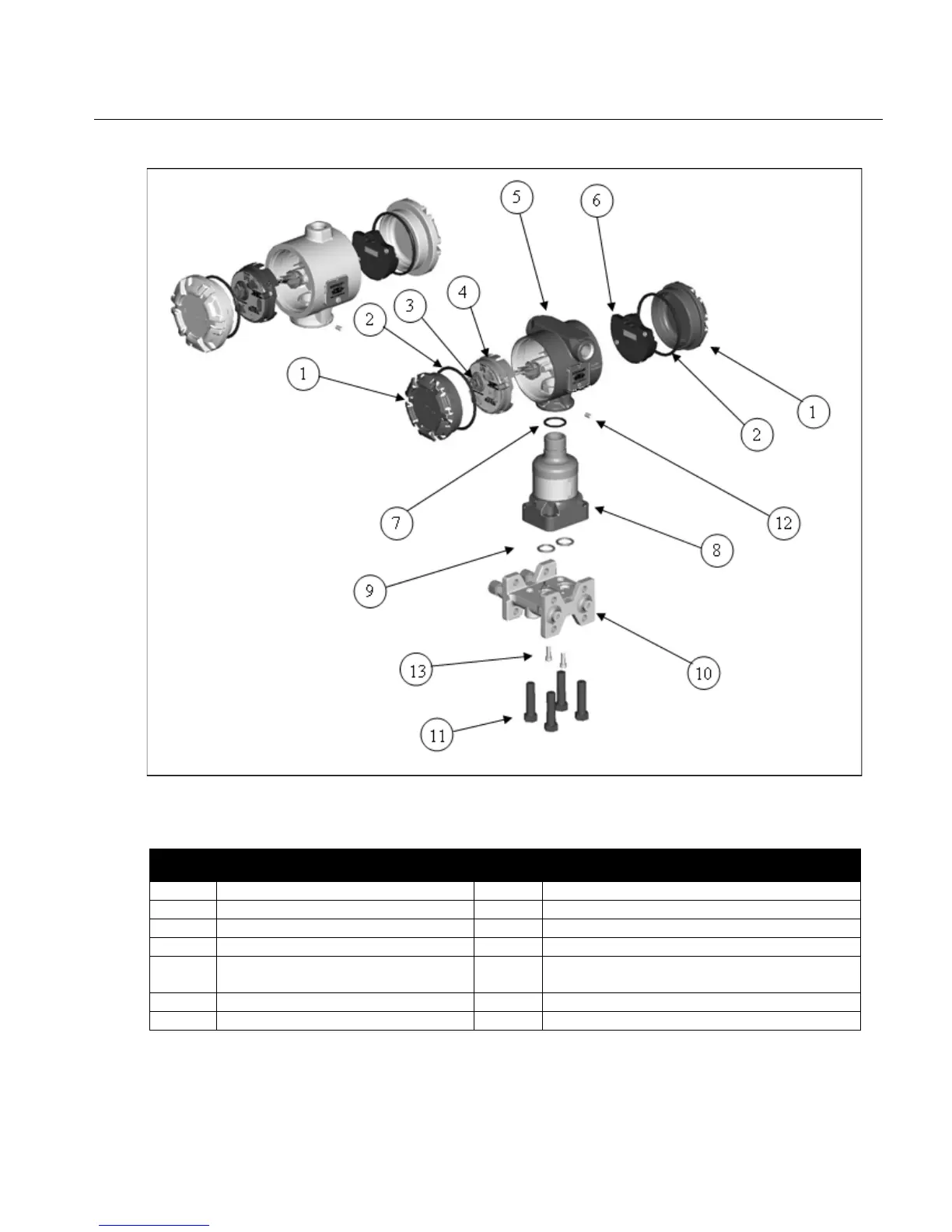

Figure 5-1 – Parts Drawing, Exploded View
Table 5-1 – 3150 Series Parts List
ITEM # DESCRIPTION ITEM # DESCRIPTION
1
Electronics Cover
8
Sensor Module
2
O-ring for Electronics Cover
9
C-rings for Process Flange
3
Coarse Zero Select Jumper
10
Process Flange
4
Electronics Assembly
11
Bolts for Process Flange
5
Electronics Housing Assembly
(includes set screws)
12 Housing Set Screws
6
Terminal Block Assembly
13
Flange Cap Screws
7
O-ring for Header
