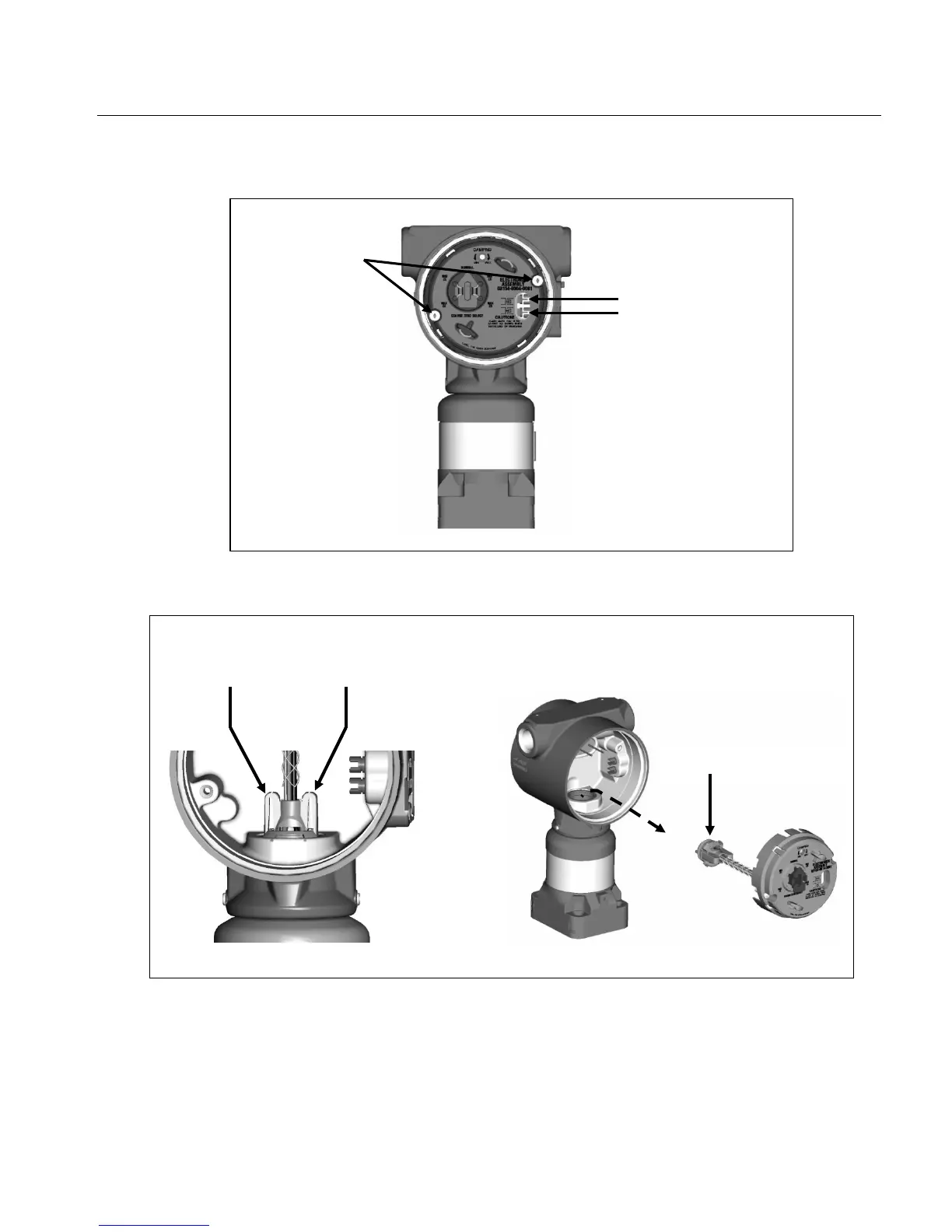

Figure 5-3 – Location of Zero and Span
Adjustment Screws and Electronics
Assembly Captive Screws
Figure 5-4 – Removing Electronics Assembly
Connector Plug
Squeeze the two clips and pull
up on the connector plug
Two 6-32 Screws
Ensure potentiometers
and adjustment screws
are aligned while
removing electronics
