Employee Setup
AC-115 Software Installation and User’s Guide Page 54
3. To assign a Code to the employee, click Add in the Card /
Pin Code Section. You will see the code type selection
window shown below. There are three methods to enter the
code:

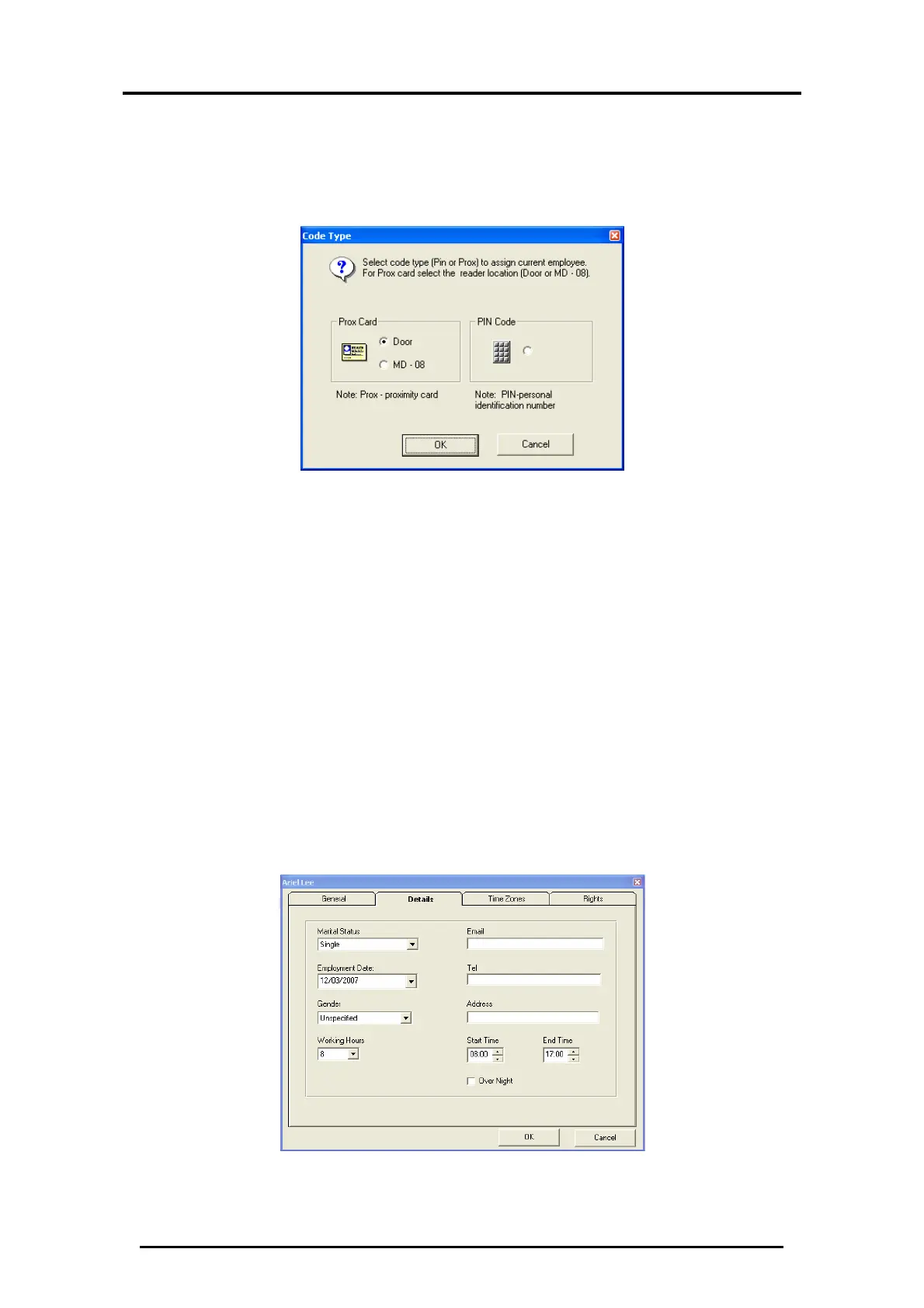

Figure 61: Employee Code Type
• The Door checkbox adds a code using a reader that is
attached to any AC-115 hardware in the network.
• The MD-08 checkbox adds a code using any 26-Bit
Wiegand compatible reader attached to the PC using
the MD-08, a 26-Bit Wiegand to RS232 Converter
Accessory. (Purchased separately).
(See Appendix B for more information on the MD-08.)
• Pin Code adds a PIN code using the PC keyboard.
Select the method of entry of your preference, make an
entry with a reader or enter a new PIN code and click OK.
Add Employees — Details Settings
Figure 62: Employee Details
