INSTALLATION MANUAL
BRP-Powertrain
Effectivity: 912 i Series
Edition 1/Rev. 2
73-00-00
Page 16
January 01/2014

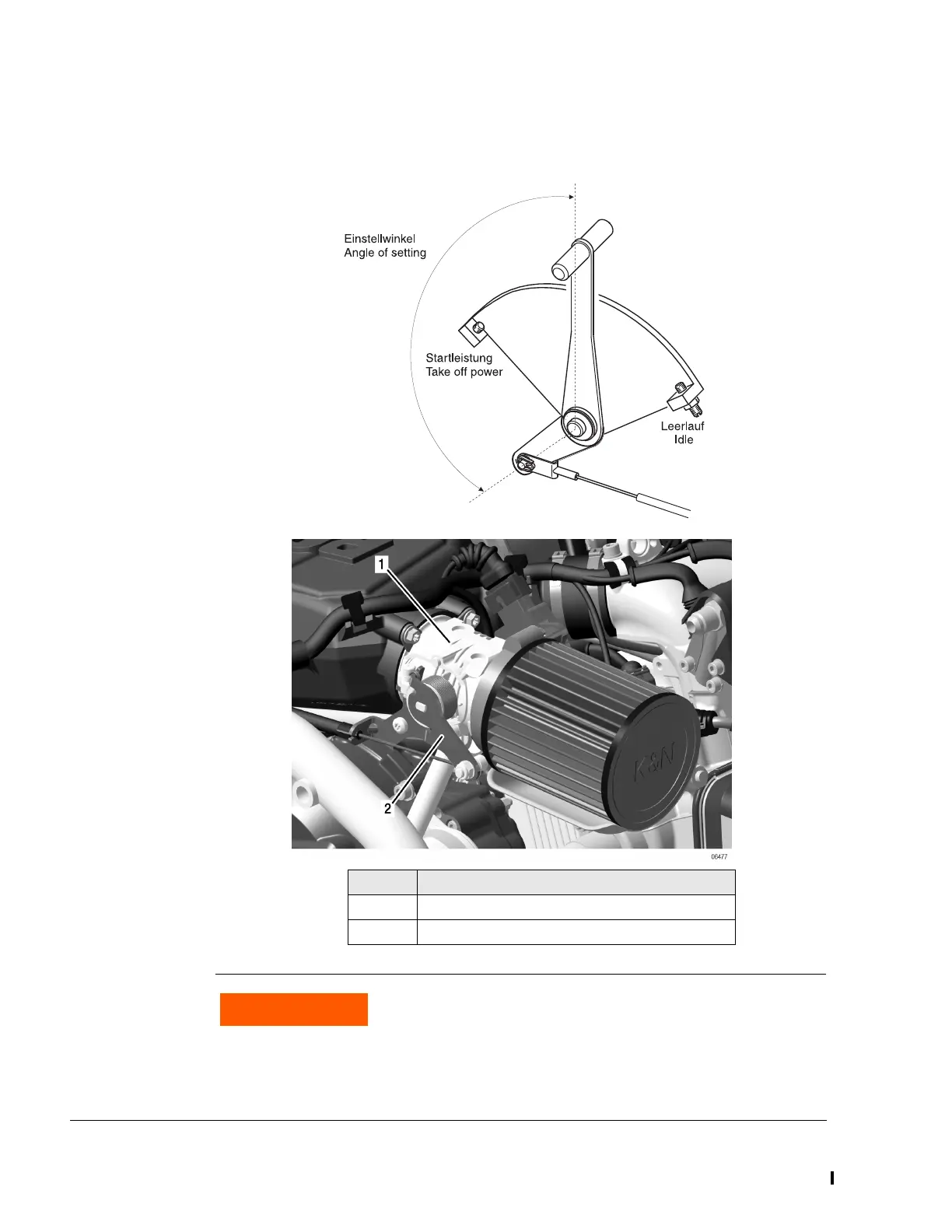

Graphic
Cable actuation
Fig. 4
Part Function
1 Throttle valve
2 Throttle lever
Non-compliance can result in serious injuries or death!
Adjust Bowden cable such that throttle valve can be
fully opened and closed. Use Bowden cable with mini-
mized friction so that the return spring on the throttle
valve can open the throttle valve completely.
