2) Hydraulic governor for constant speed propeller
2.1) Technical data for connections
General note See Fig. 3
NOTE: See also SB-912-052 “Installation/use of governors for RO-
TAX engine type 912 Series“, latest issue.
Drive Drive via propeller gearbox.
- Position of the propeller connection (1) on the governor flange.

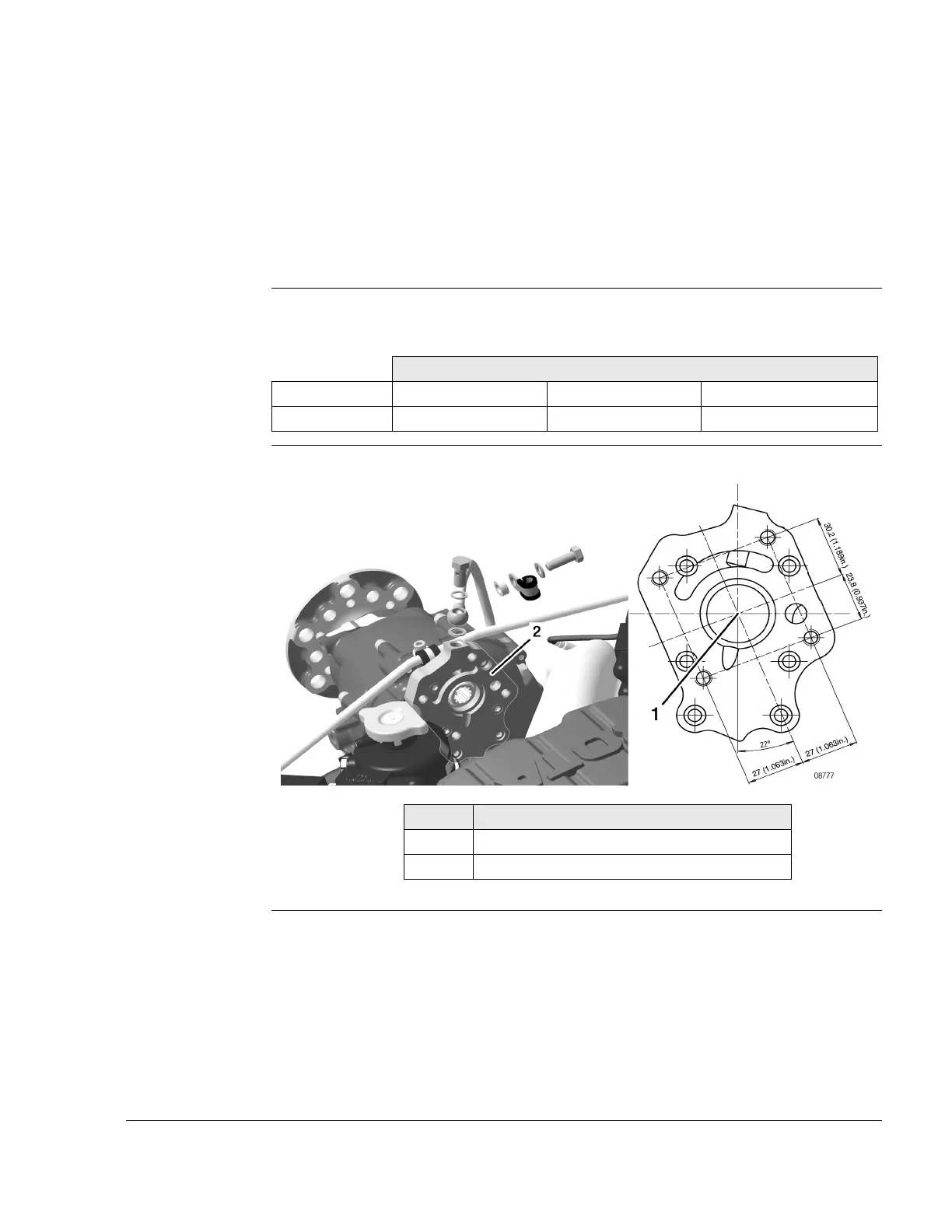

Graphic Crankcase flange
Fig. 3
Axes
Point of support x-axis mm y-axis mm z-axis mm
-206.3 mm (-8.12 in.) 0 51.5 mm (2.03 in.)
Part Function
1 Connection for propeller governor
2 Governor flange
