2) Connecting sizes and position of connections
General note
NOTE: The oil line connections are optionally available as UNF
threads.
2.1) Oil circuit (engine)
General note See Fig. 6.
Depending on engine configuration, the oil feed line connectors may
vary:
- 912 iSc/iS thread M18 optional UNF thread
Oil pump (inlet) Connection:

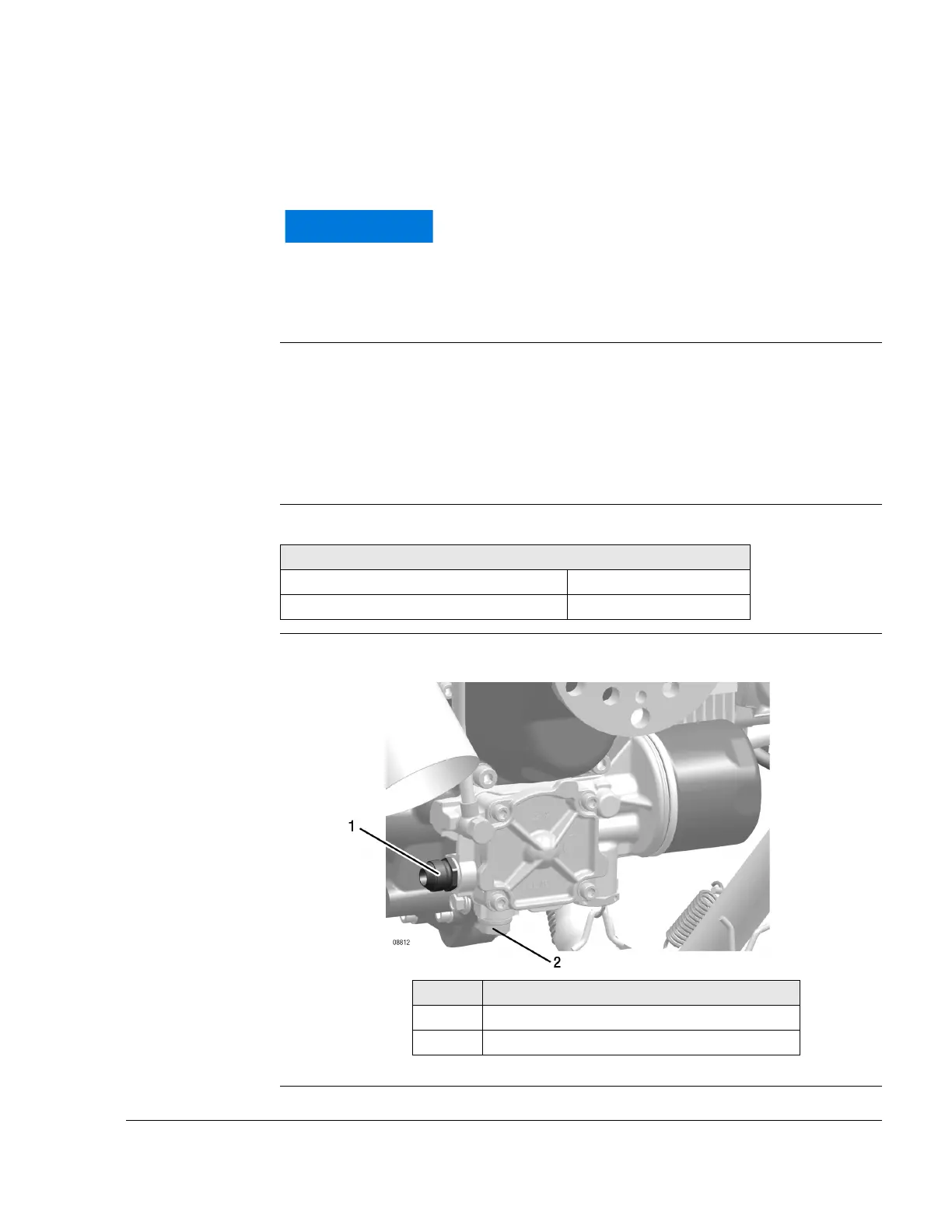

Graphic Oil pump inlet
Fig. 6

WARNUNG
NOTICE
Utilize the full slip-on length for all connections. Se-
cure hoses with suitable screw clamps or crimp con-
nections.
Oil pump (inlet)
Screw socket (1) 3/4-16 UNF/M16x1.5
Tightening torque of inlet line 25 Nm (18.44 ft.lb.)
Part Function
1 3/4-16 UNF/M16x1.5 screw socket
2 Alternative connection
