Rotax 912 i series Installation Manual

d05786.fm
INSTALLATION MANUAL
BRP-Powertrain
Effectivity: 912 i Series
Edition 1/Rev. 2
76-00-00
Page 5
January 01/2014
1) ECU
General There are two independent engine management units housed in a single
waterproof box.
1.1) Technical data
See Fig. 2.

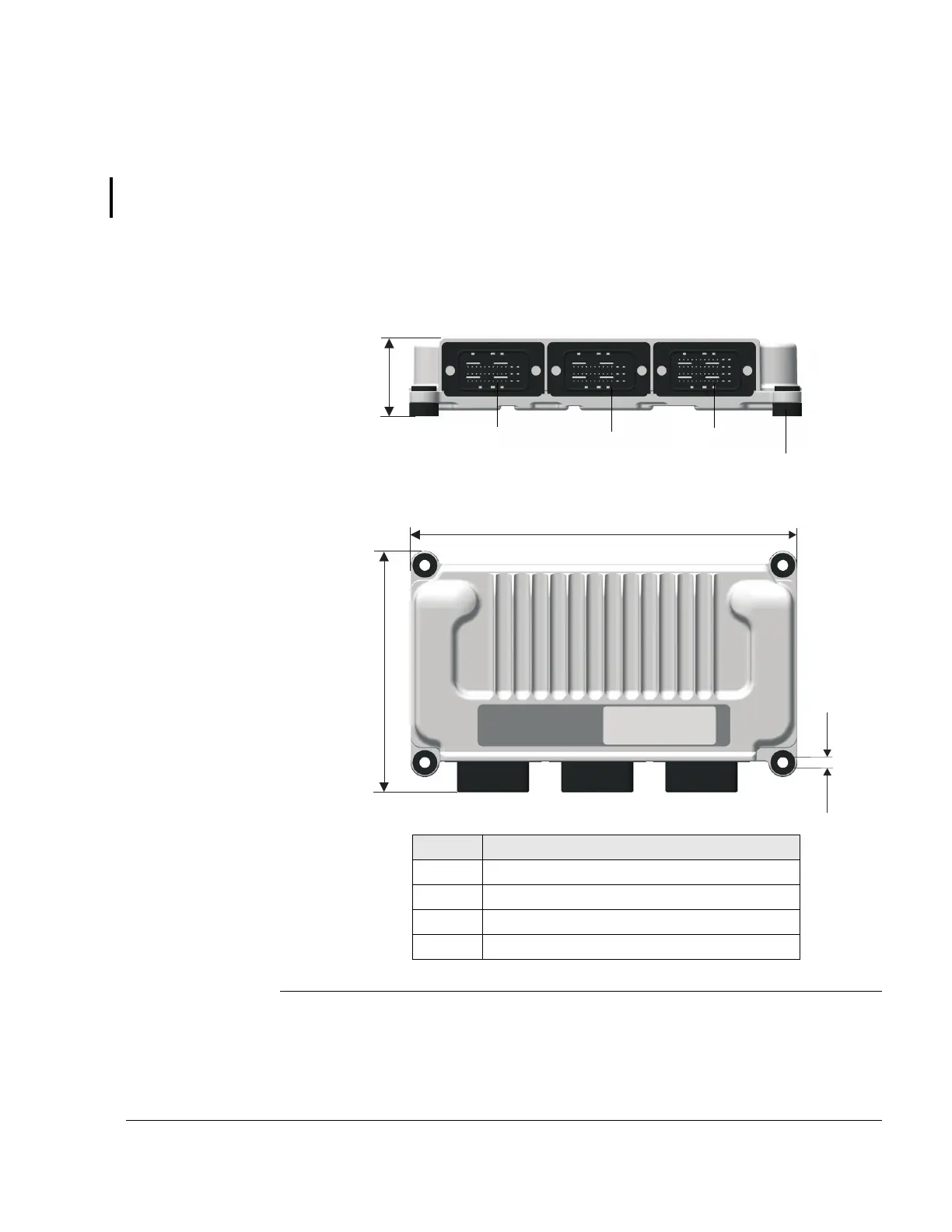

Graphic Connections and dimensions
Fig. 2 06328
Part Function
1 Plug connection A1
2 Plug connection A2
3 Plug connection B
4 Rubber vibration damping/insulation material
1
2
3
46.5mm
233.1mm (9.18in.)
145.7mm
ø6.5mm (0.26in.)
ø0.256mm (0.01in.)
4
(5.74in.)
(1.83in.)

Rotax 912 i series Specifications

General

Number of Cylinders	4
Max Power	100 hp (73.5 kW)
Max Power Output RPM	5800 rpm
Ignition System	Dual electronic ignition
Oil System	Dry sump, forced lubrication with separate oil tank
Reduction Gear Ratio	2.43:1
TBO	2000 hours
Engine Type	4-stroke, horizontally opposed
Displacement	1352 cm³
Bore x Stroke	84 mm x 61 mm
Max Torque	128 Nm
Fuel Type	Avgas 100LL or unleaded automotive gasoline
Fuel System	Electronic fuel injection
Cooling System	Liquid/air-cooled
