3.2) Crankshaft drive

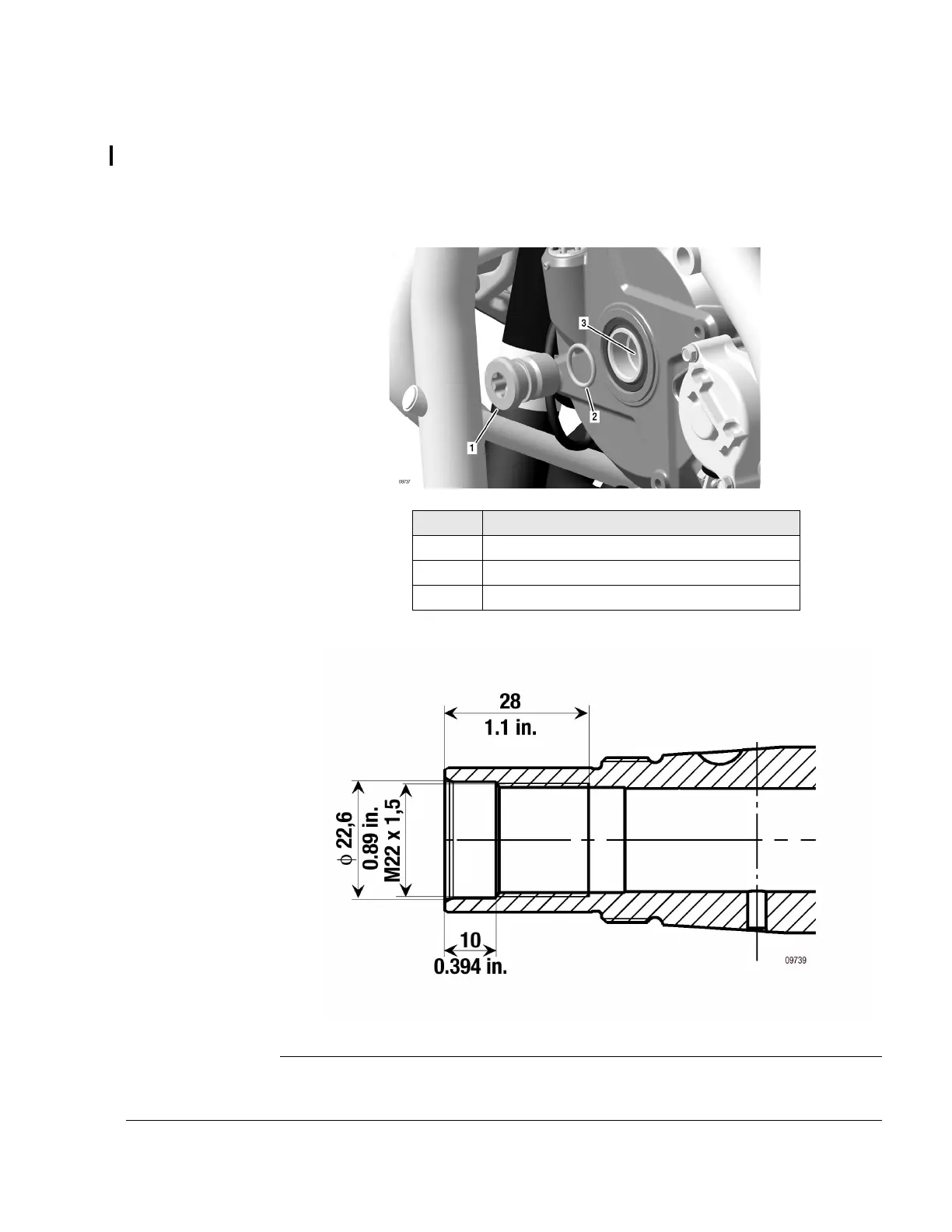

See Fig. 6 to Fig. 7.
Max. moment of inertia 15 kg cm
2
(0.036 lb ft
2
).
Crankshaft
Fig. 6
Part Function
1 Plug screw M22x1,5
2 O-Ring 18x2.5
3 Support bearing
