3.2) Rectifier regulator
See Fig. 6.
Version Three-phase short rectifier regulator.
Output voltage 14.2 V± 0.3 (from 1000 ± 250 r.p.m).
Component tem-
perature
Max. permissible component temperature:
80 °C (176 °F) (measured in area (2)).
NOTE: The performance specifications are given for optimal
cooled components.
Weight See chap. 72-00-00 section 2) Subsection 2.1: Weight.

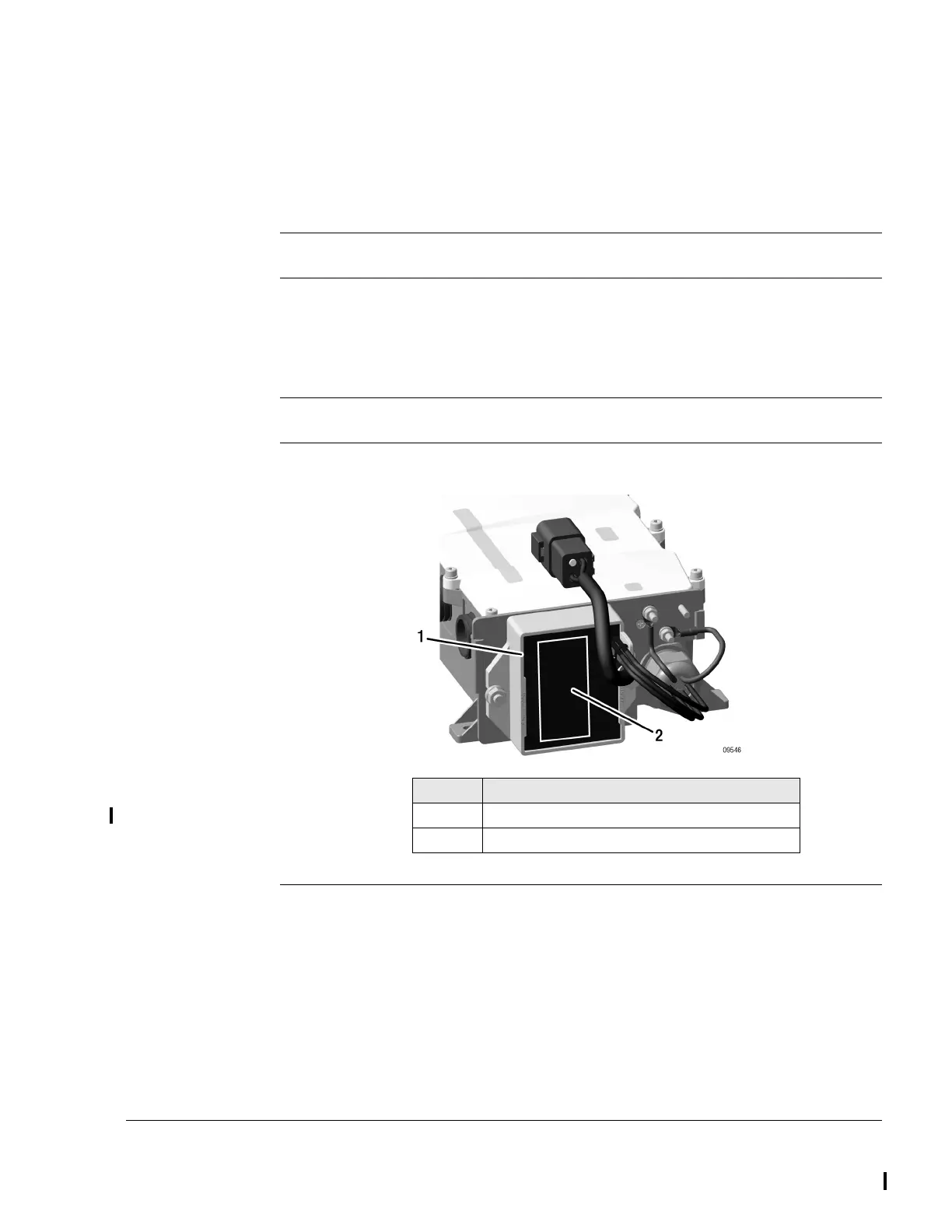

Graphic Component temperature measurement area
Fig. 6
06385
Part Function
1 Rectifier regulator
2 Component temperature measuring area
