NOTE: The measurement is taken at an oil temperature of 135 °C
(275 °F).
Connections See Fig. 5.
Power supply wires (1) from the internal generator (exciting from the left
side (cylinders 2/4) of the ignition housing) to the regulators on FUSE
BOX.
DEUTSCH connector:
- black for generator A/regulator A
- grey for generator B/regulator B

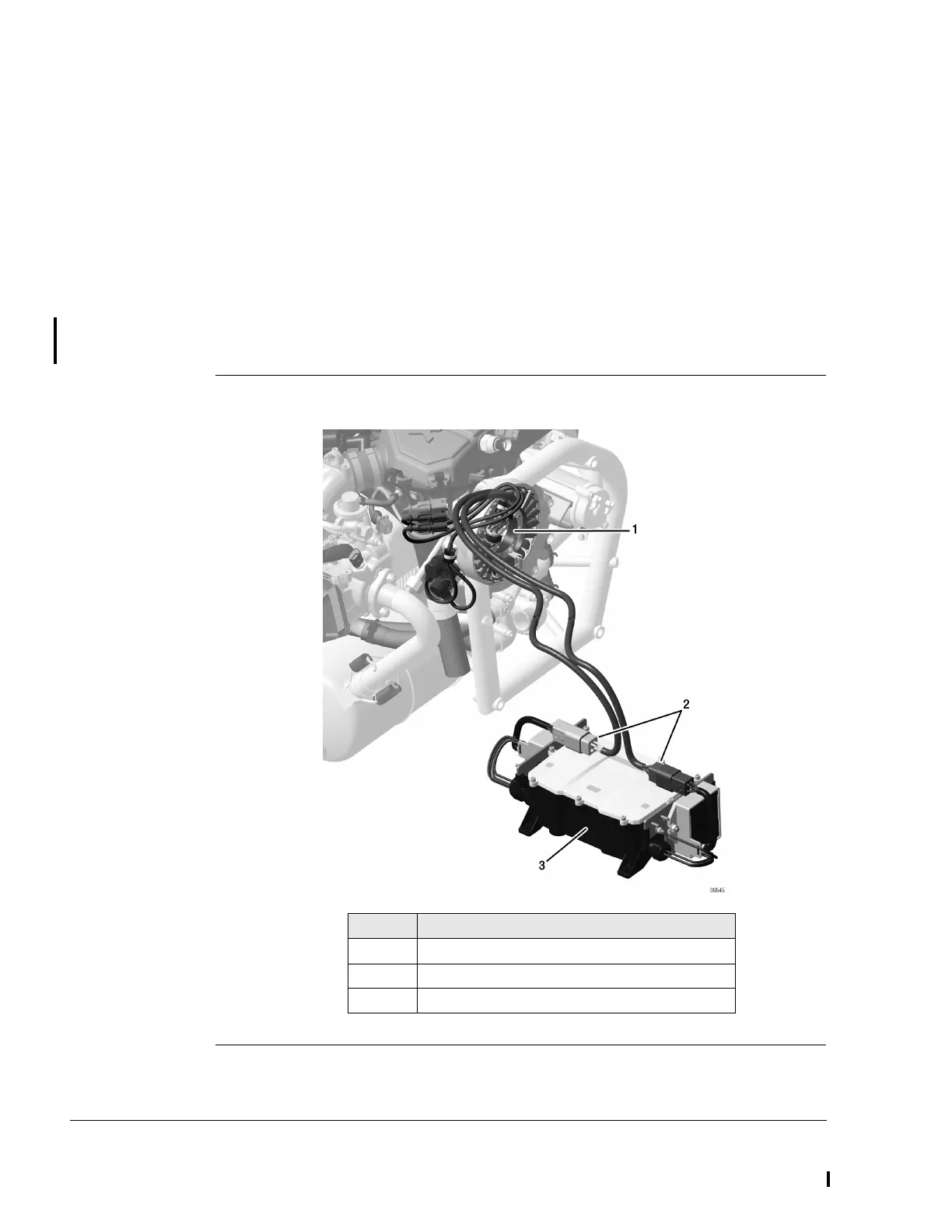

Graphic Connections
Fig. 5
Part Function
1 Stator
2 DEUTSCH connector
3 FUSE BOX with rectifier regulator
