2.2) Connections
Connection See Fig. 4.
Seals supplied with the fuse box assy., must be inserted into the grooves
provided for each connector plug.
Insert the wiring harness plug in the correct position on the FUSE BOX
assy.
The mating plug for the FUSE BOX is included in the scope of delivery.
NOTE: A set of spare fuses can be found in the FUSE BOX.

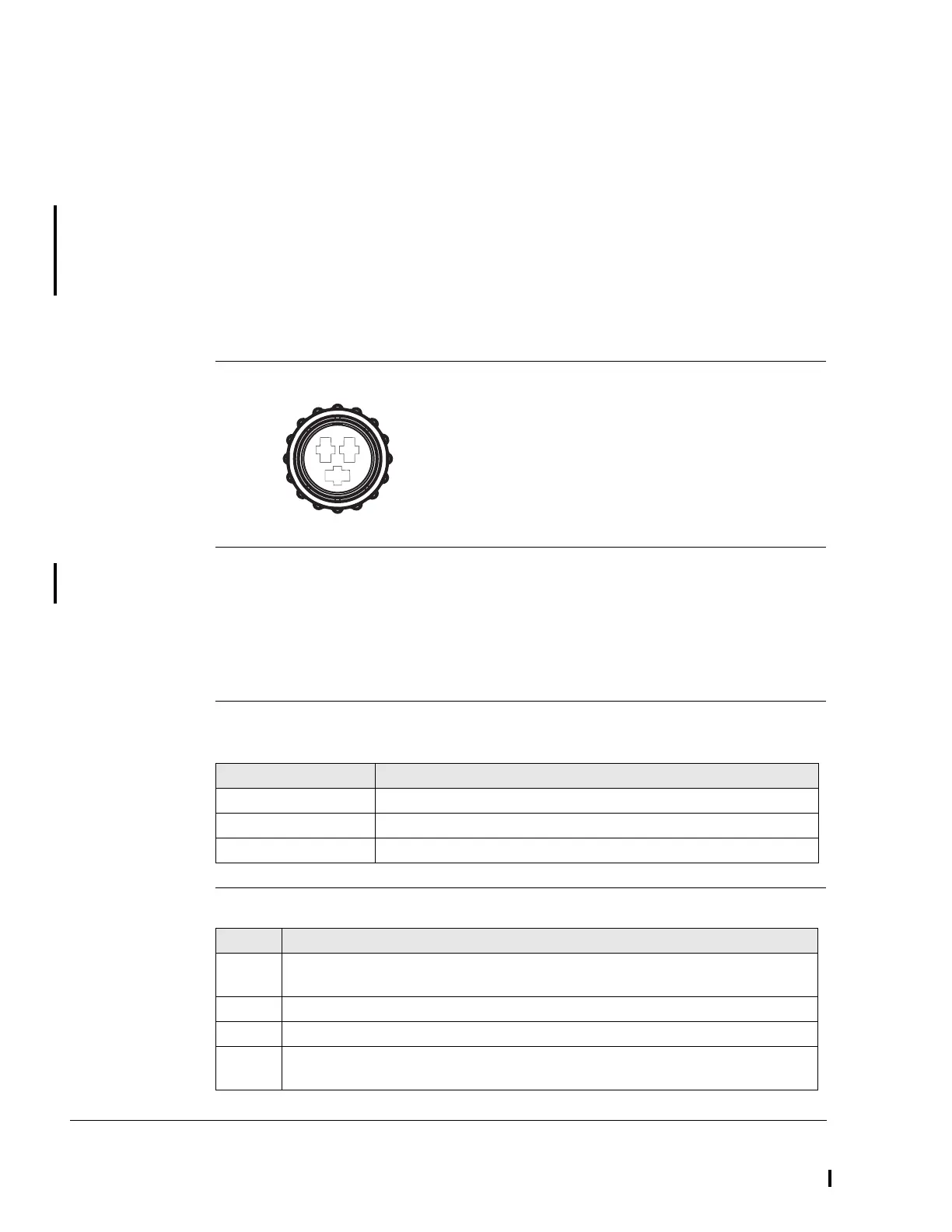

Graphic X3 connector
Fig. 4 06393
The mating connector (AMP connector) for the FUSE BOX is included in
the scope of supply.
2.3) Fitting the AMP connector
General note See Fig. 5.
NOTE: The AMP connector is included in the scope of delivery.
Special tools The following special tools and equipment are necessary for fitting the
AMP connector.
Procedure Fitting the AMP connector:
PIN 1 backup battery switch
PIN 2 start power switch
PIN 3 start power switch
Part number Description
n.a. Crimping pliers TYCO-Connectivity 69710-1
n.a. Tool TYCO-Connectivity 90145-1
n.a. Disassembly tool TYCO-Connectivity 91124-1
Step Procedure
1 Feed line (1) through the connector receptacle (5), squeeze plate (6) and ca-
ble holder (7).
2 Strip insulation from line (1).
3 Install socket contact (2) using suitable crimping pliers.
4 Push the socket contact (2) into the appropriate position in the AMP connector
(3) until it engages.
To Next Page
