Overview
Lubrication system

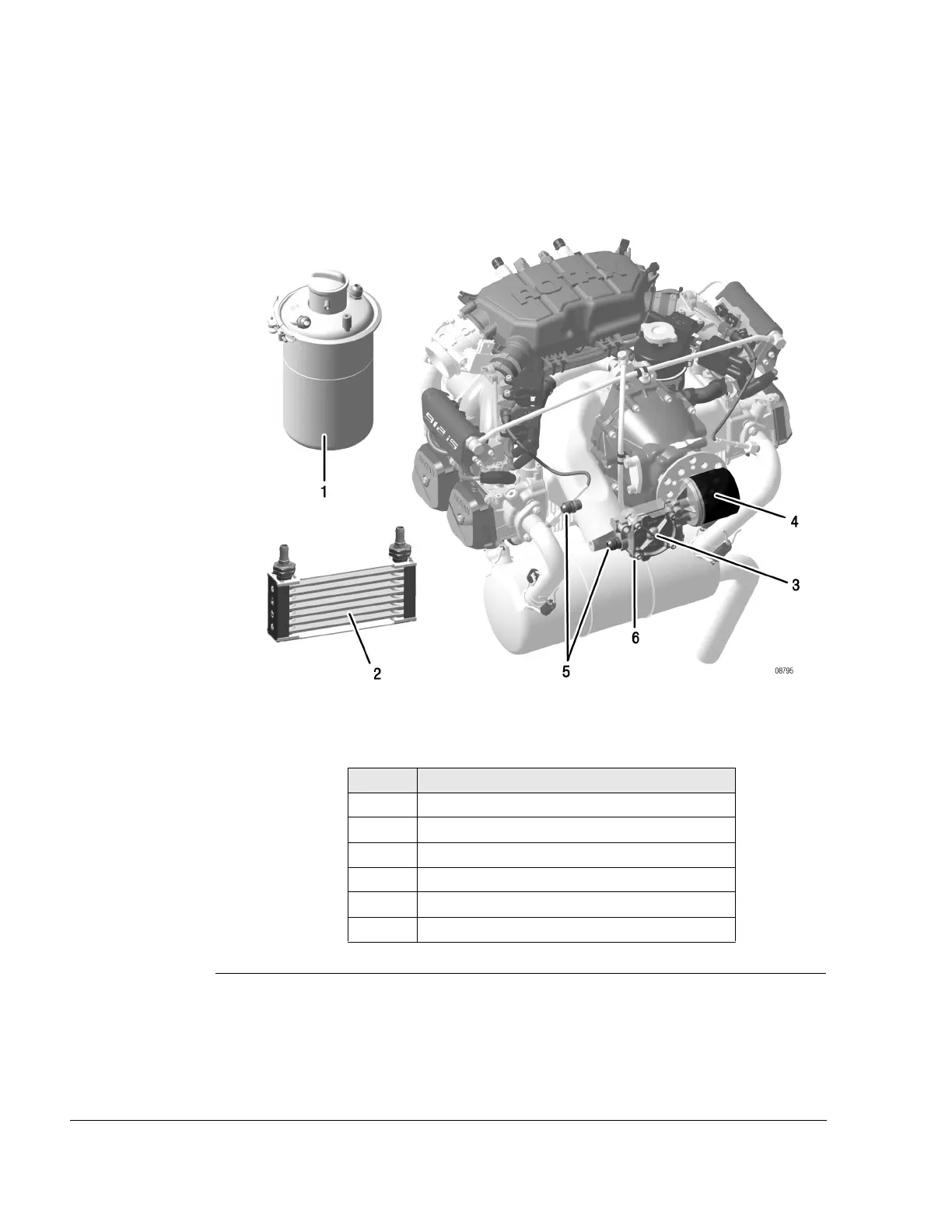

Fig. 1
NOTE: The suction line can also be connected to the bottom of the
oil pump housing. In this case, the plug screw and gasket
ring are to be replaced by the screw socket and gasket ring.
See the current 912 i Series Heavy Maintenance Manual.
Part Function
1 Oil tank
2 Oil cooler
3 Oil pump
4 Oil filter
5 Screw socket
6 Plug screw
