Rotax 912 i series Installation Manual

d05398.fm
INSTALLATION MANUAL
BRP-Powertrain
Effectivity: 912 i Series
Edition 1/Rev. 0
79-00-00
Page 6
January 01/2012
Graphic

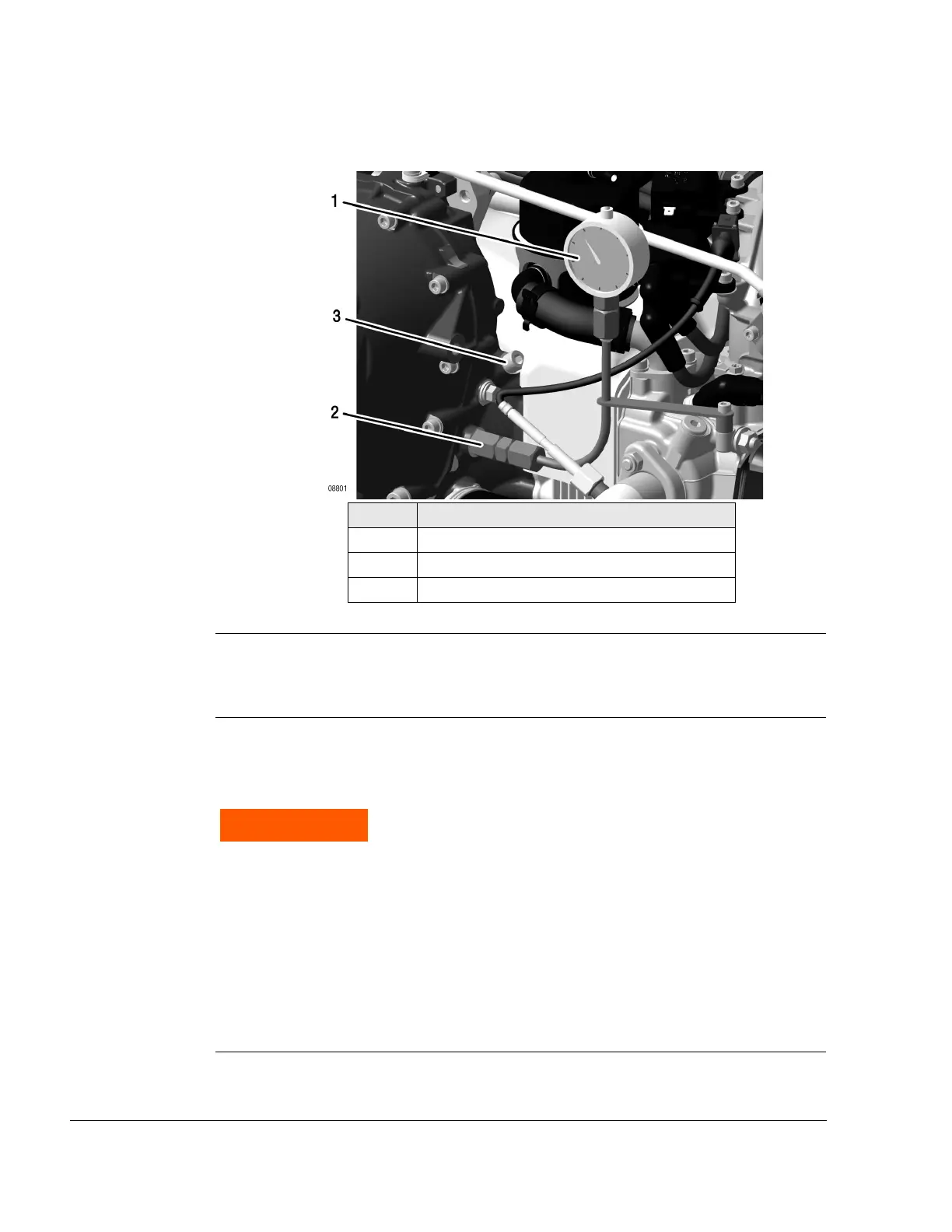

Measurement of crankcase pressure
Fig. 3
Magnetic plug NOTE: The thread for the magnetic plug (2) must be M12x1.5 (met-
ric) and M8 for the crankshaft locking screw (3) (use always
new gasket).
Pressure values The pressure in the crankcase at (full throttle) must not exceed the prevail-
ing ambient pressure by more than 0.45 bar (6.53 psi) at 90 °C (194 °F) oil
temperature.
If crankcase pressure and measuring pressure of the vacuum readings
and all operational data (flight attitude, temperatures, etc.) are within the
specified limits, then it can be assumed that the oil circuit is working cor-
rectly.
Part Function
1 Pressure indicator
2 Magnetic plug
3 Crankshaft locking screw

WARNUNG

WARNING
Non-compliance can result in serious injuries or death!
If the readings exceed the pressure limits, then the
flow resistance in the oil return line from oil sump to oil
tank is too high in the current engine installation (con-
tamination, restrictions of cross-section, etc.). This
condition is unsafe and must be rectified immediately.

Rotax 912 i series Specifications

General

Number of Cylinders	4
Max Power	100 hp (73.5 kW)
Max Power Output RPM	5800 rpm
Ignition System	Dual electronic ignition
Oil System	Dry sump, forced lubrication with separate oil tank
Reduction Gear Ratio	2.43:1
TBO	2000 hours
Engine Type	4-stroke, horizontally opposed
Displacement	1352 cm³
Bore x Stroke	84 mm x 61 mm
Max Torque	128 Nm
Fuel Type	Avgas 100LL or unleaded automotive gasoline
Fuel System	Electronic fuel injection
Cooling System	Liquid/air-cooled
