INSTALLATION MANUAL
BRP-Powertrain
Effectivity: 912 i Series
Edition 1/Rev. 0
79-00-00
Page 23
January 01/2012
Graphic

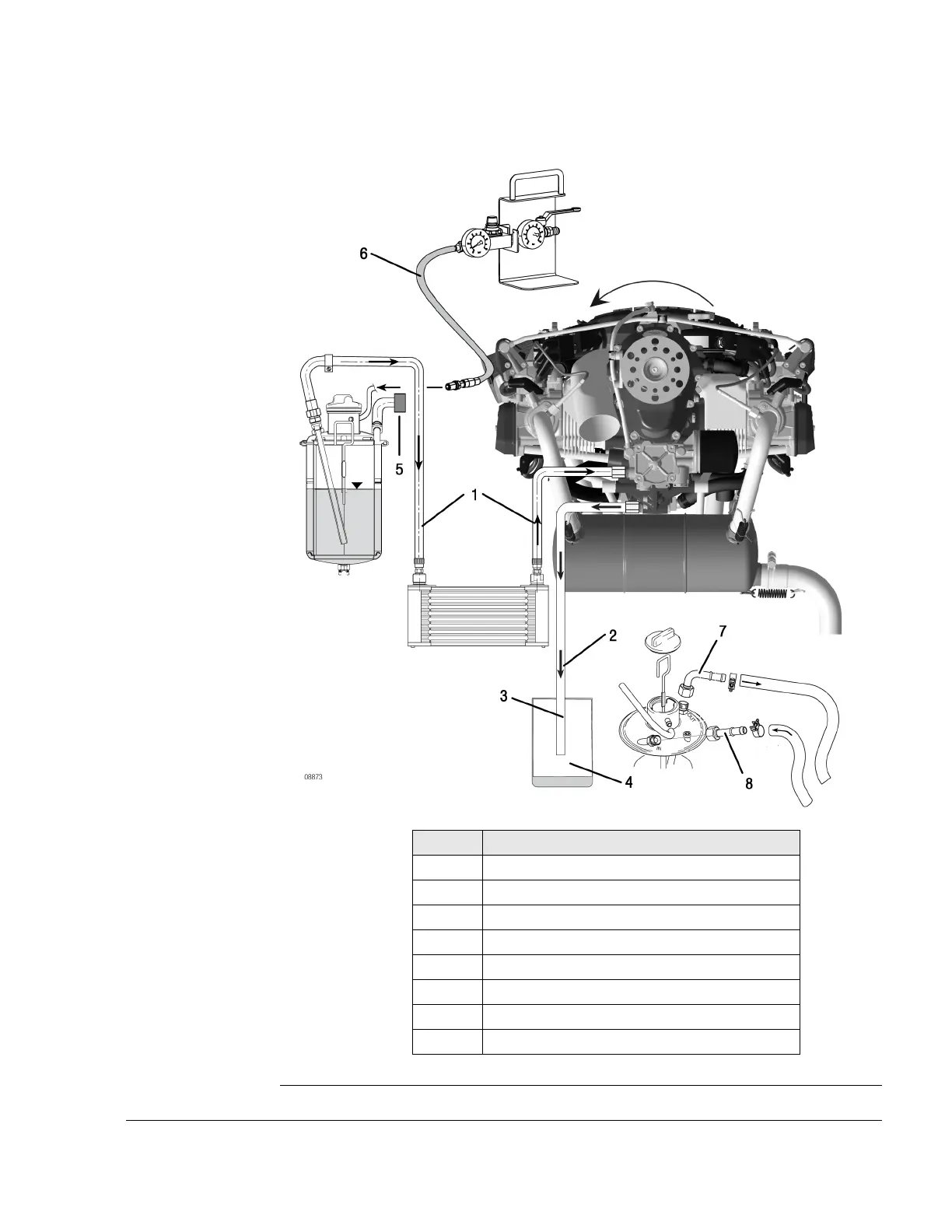

Lubrication system
Fig. 11
02233
Part Function
1 Suction line
2 Oil return line
3 Free end
4 Tank
5Plug
6 Purging connection
7 To oil pump
8 Return from engine
Direction of rotation of engine
Pressure....max. 1 bar
(14.5 psi)
Relevant
Plug
