Vertical axis
The y-axis must be perpendicular to the longitudinal axis of the aircraft.
Permissible deviation from perpendicular: ±10°

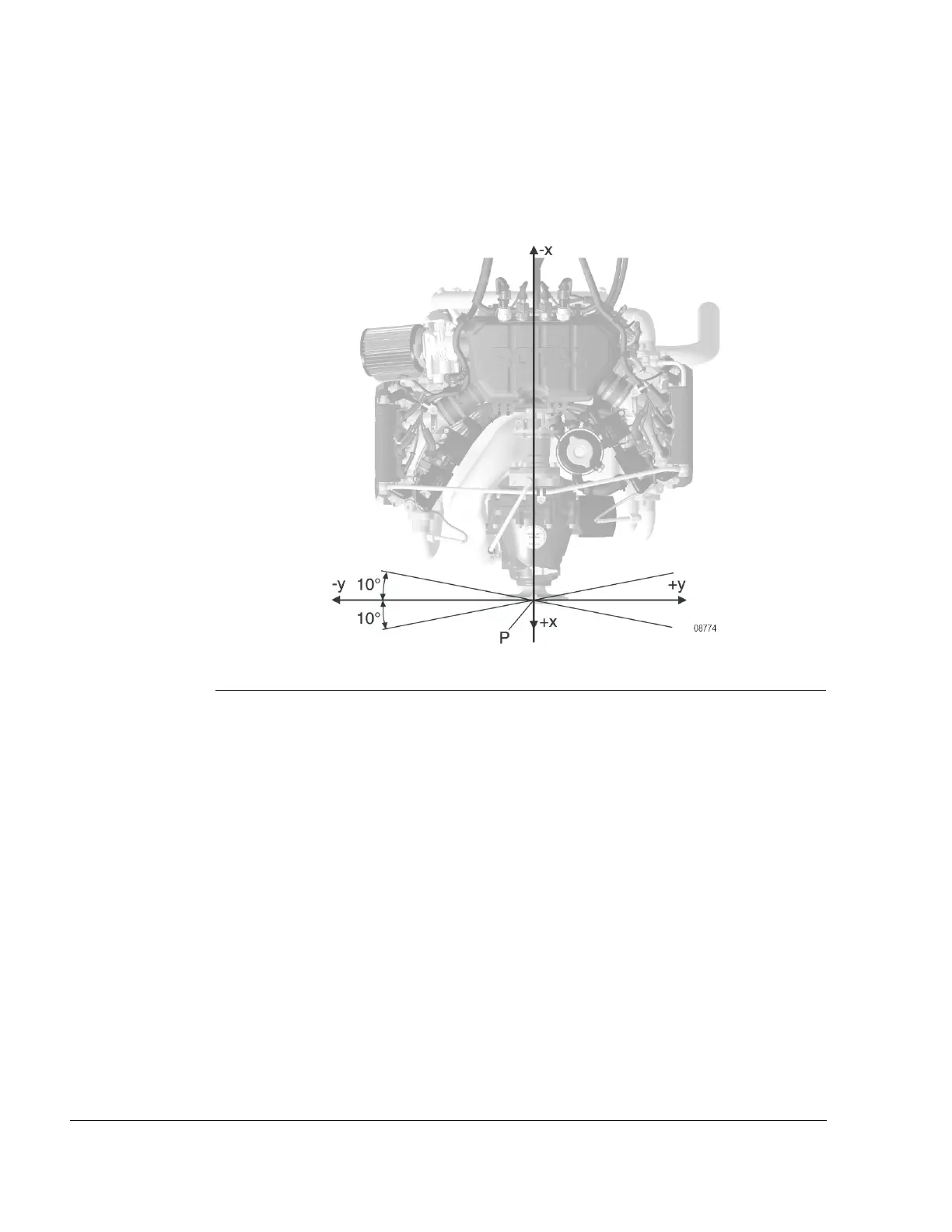

Fig. 7
