INSTALLATION MANUAL
BRP-Powertrain
Effectivity: 912 i Series
Edition 1/Rev. 2
24-00-00
Page 21
January 01/2014
Graphic

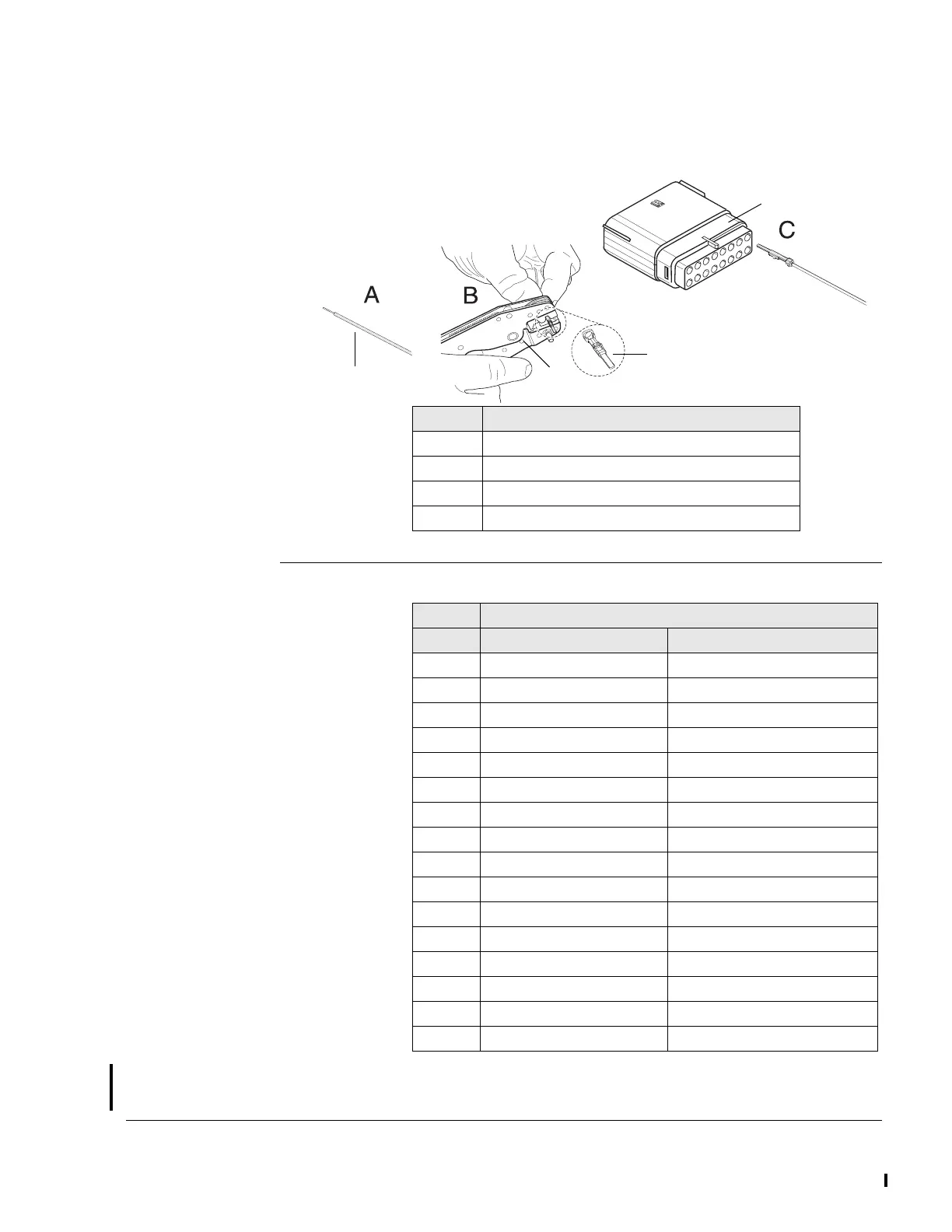

Fitting the Faston connector
Fig. 10 06334
Harness Inter-
face Connector
Pin assignment
1
Maintenance Port LANE A
2
Maintenance Port LANE B
Part Function
1 Faston connector
2 Wiring (airframe)
3 Crimping crap
4 Harness Interface Connector
2
3
1
4
Pin assignment
PIN No. HIC A HIC B
1 LANE_SEL_SW_A_1 LANE_SEL_SW_B_1
2 SUPP_WARN_LAMP_A SUPP_WARN_LAMP_B
3 SIG_FUEL_PUMP_1 SIG_FUEL_PUMP_2
4 CAN_GND_1_A CONN_STARTER_REL_SW
5 CAN_LOW_1_A -
6 CAN_HIGH_1_A CAN_GND_1_B
7 LANE_SEL_SW_A_2 CAN_LOW_1_B
8 WARN_LAMP_A CAN_HIGH_1_B
9 GND_FUEL_PUMP_1 LANE_SEL_SW_B_2
10 CAN_GND_2_A
1
WARN_LAMP_B
11 CAN_LOW_2_A
1
GND_FUEL_PUMP_2
12 CAN_HIGH_2_A
1
SUPP_START_SWITCH
13 - -
14 - CAN_GND_2_B
2
15 - CAN_LOW_2_B
2
16 - CAN_HIGH_2_B
2
