Rotax 912 i series - Page 74

Effectivity: 912 i Series
Edition 1/Rev. 2
Page 32
January 01/2014

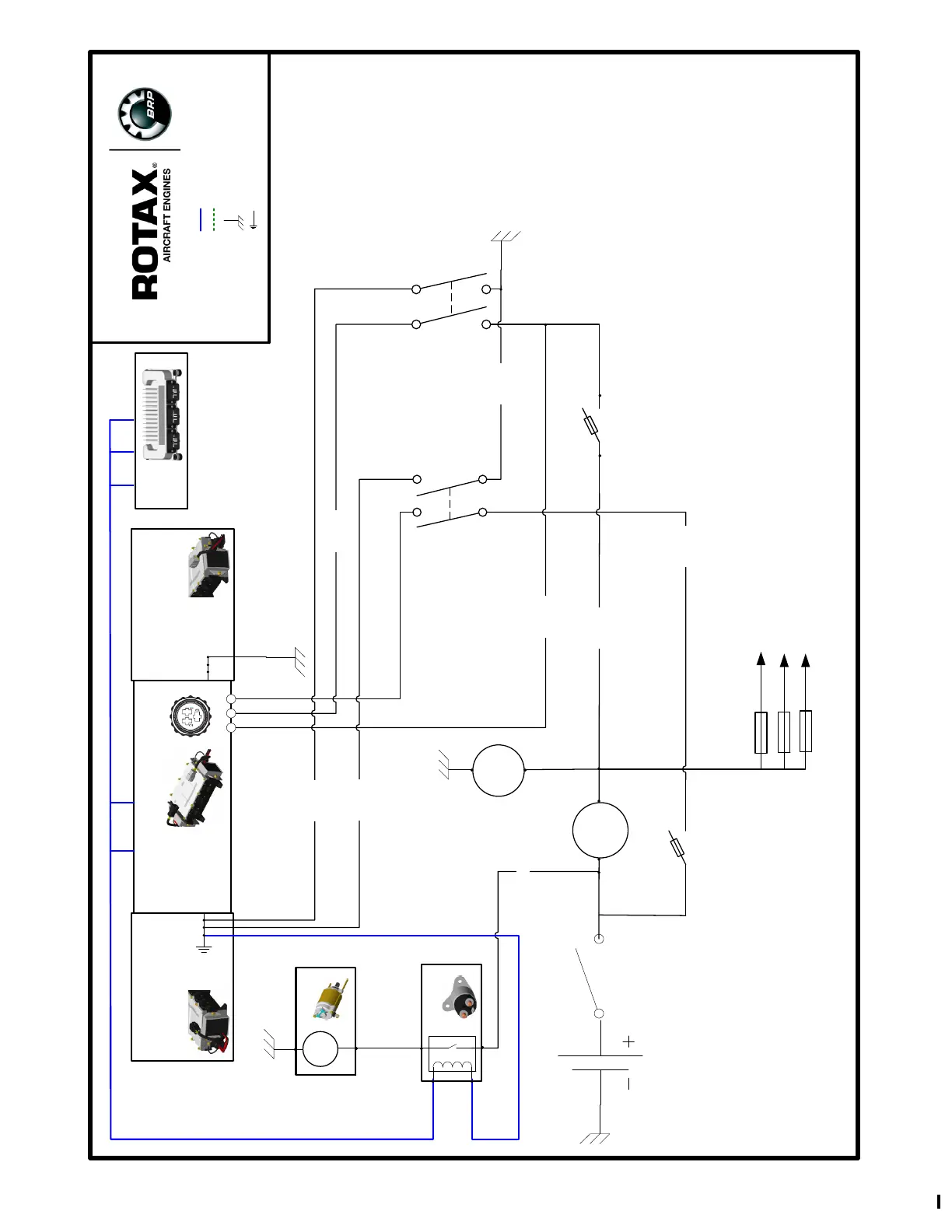

Wiring Powerside
Sicherungskasten / Fuse Box
Reglerplatte A
Regulator board A
Reglerplatte B
Regulator board B
ECU
123
Battery
Master Switch
Circuit breaker
(30 A)
AWG 12
AWG 12
Backup battery switch
(guarded switch)
24
31
Start power switch
(momentary)
1 2
3
4
AWG 12
AWG 12
AWG 12
A
Fuse has to be
provided by the aircraft
manufacturer
AWG 04
AWG 12
X3
M
Start Relais
E-Starter
AWG 12
AWG 12
V
912 iS wiring harness
Airframe Ground
EMS ground
AWG 04 (21,1 mm²) AWG 12 (3,3 mm²) AWG 16 (1,50 mm²) AWG 18 (1,00 mm²) AWG 20 (0,75 mm²)
Optional (not required)
Circuit breaker
(30 A)
08251
Bus bar (Airframe)
